weldcapWelding helmet
weldcap bumpauto-darkening welding cap with bump cap
A super-lightweight welding cap with an integrated bump cap, a panoramic view and shade 9–12.
- Protection levels (manual)
- 9–12
- Protection level (not activated)
- 3.0
- Classification EN379
- 1–1–1–2
- Sensoric
- Wide-angle detection sensor
- Article number
- 1008.001
- EAN
- 7640127615652
- Pieces per pack
- Available in the shop centrumspawalnicze.pl — prices, availability and shipping in the shop
- In the range of centrumspawalnicze.pl — prices, availability and shipping in the shop
- On order — order from us by phone or email, we reply within one business day
- Genuine optrel product from the authorised distributor SPIDWELD, with the manufacturer's warranty
- Technical advice: Mon–Fri 7:30–15:30 (CET), +48 530 009 555
Highlights
- Integrated bump cap
- Complete cap weighs 360 g
- Panoramic view thanks to an ergonomic nose cut-out
- Stepless shade adjustment 9–12, light state 3
- Optical class 1/1/1/2, grind mode
- Flame-retardant, removable textile part in black or green
Overview

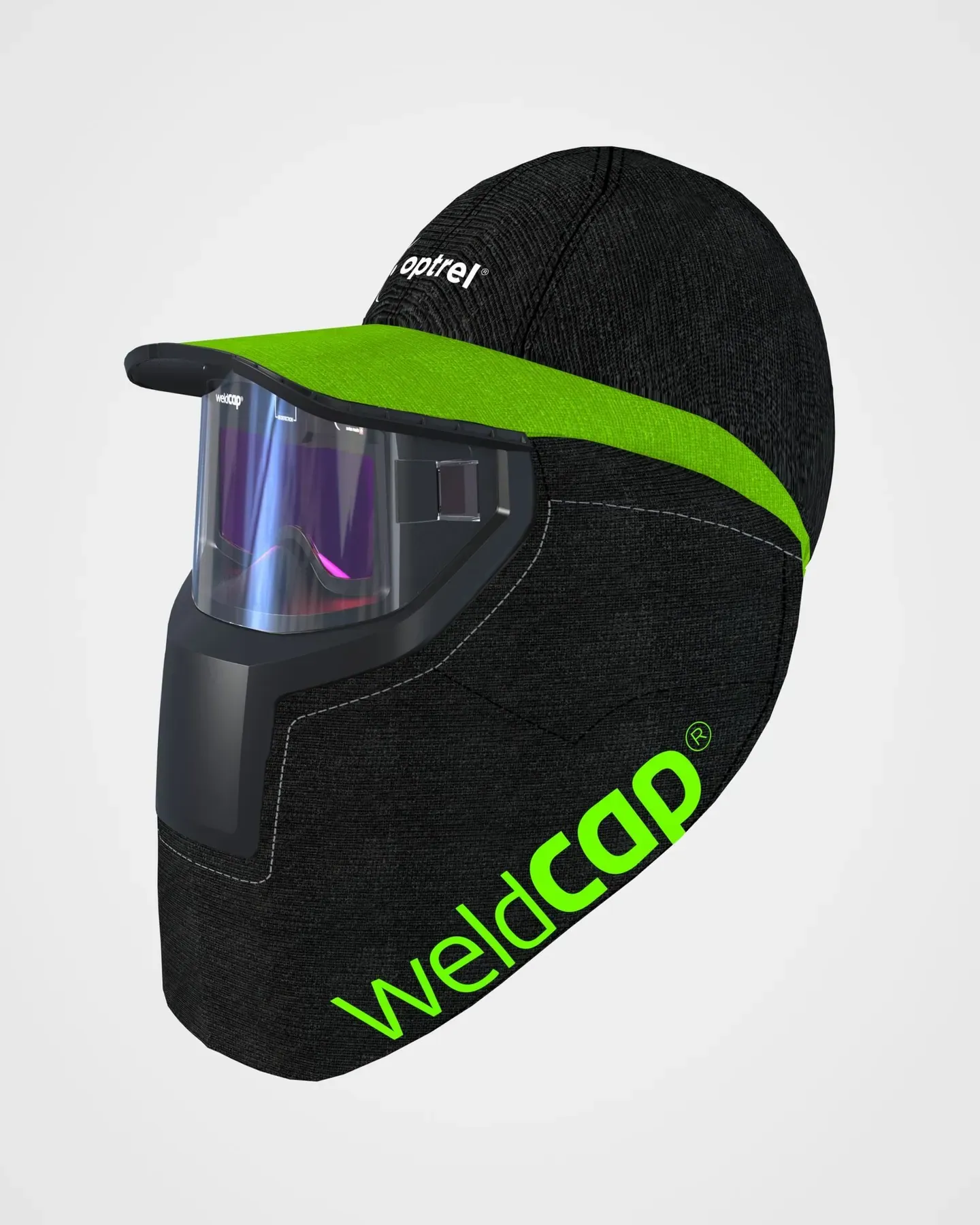

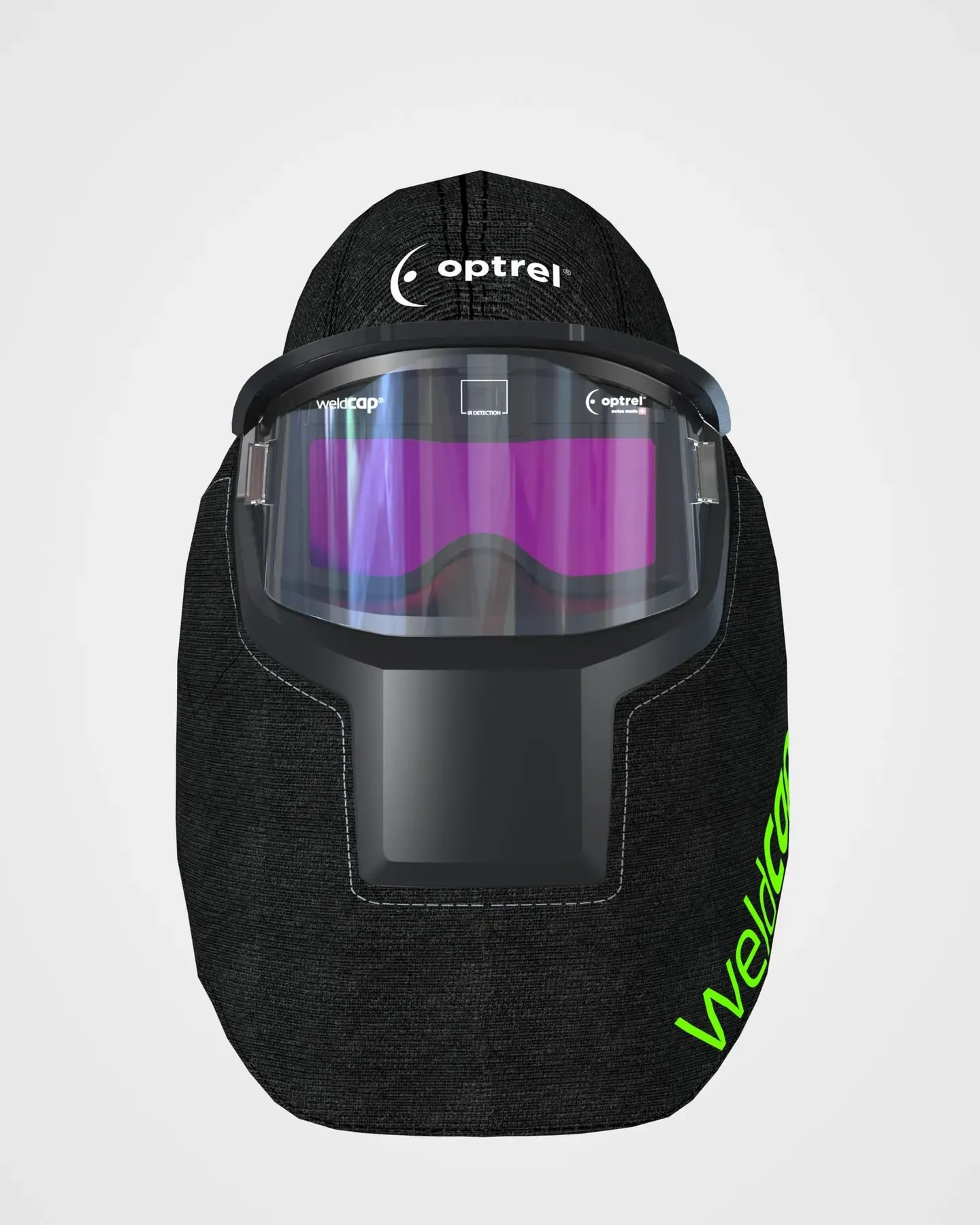

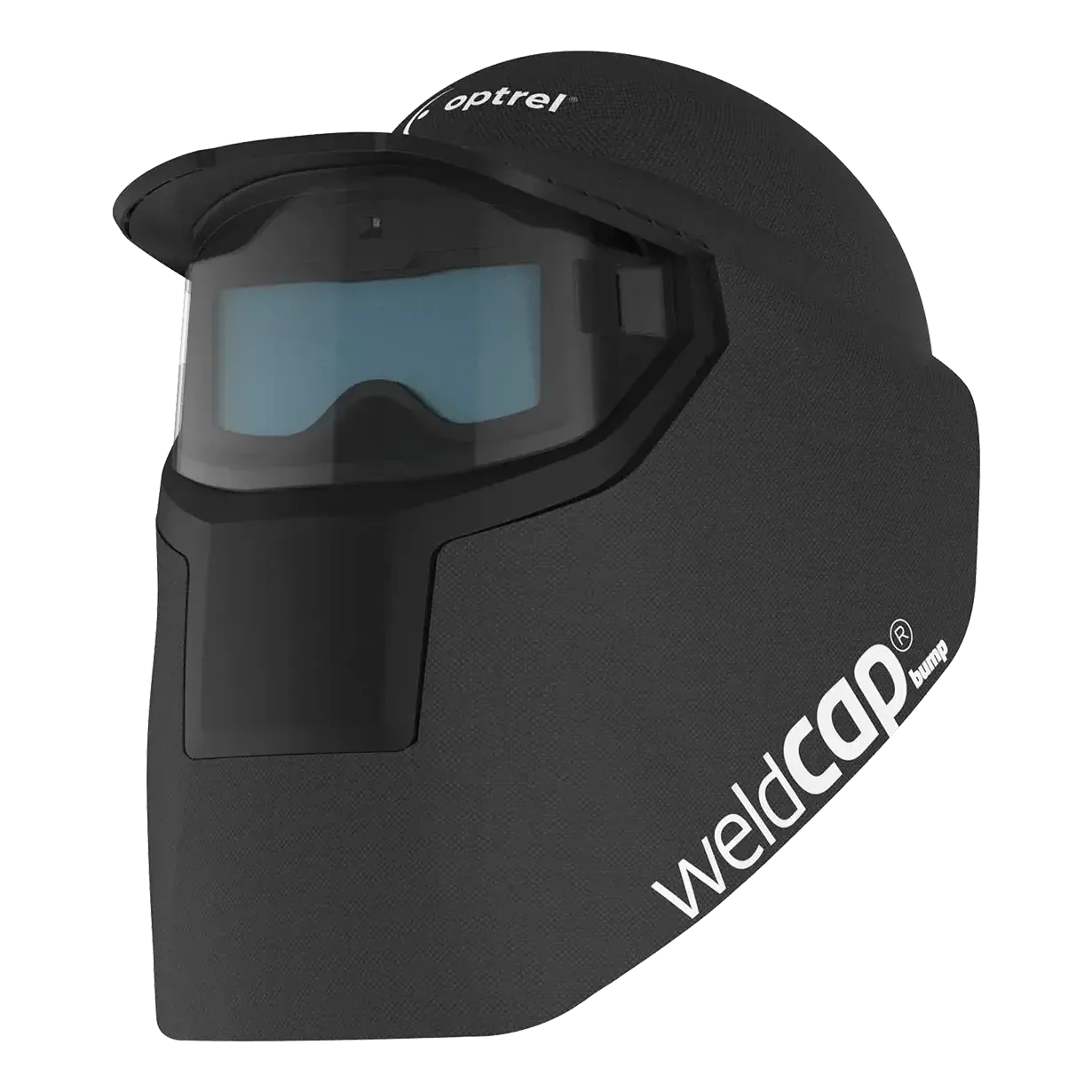

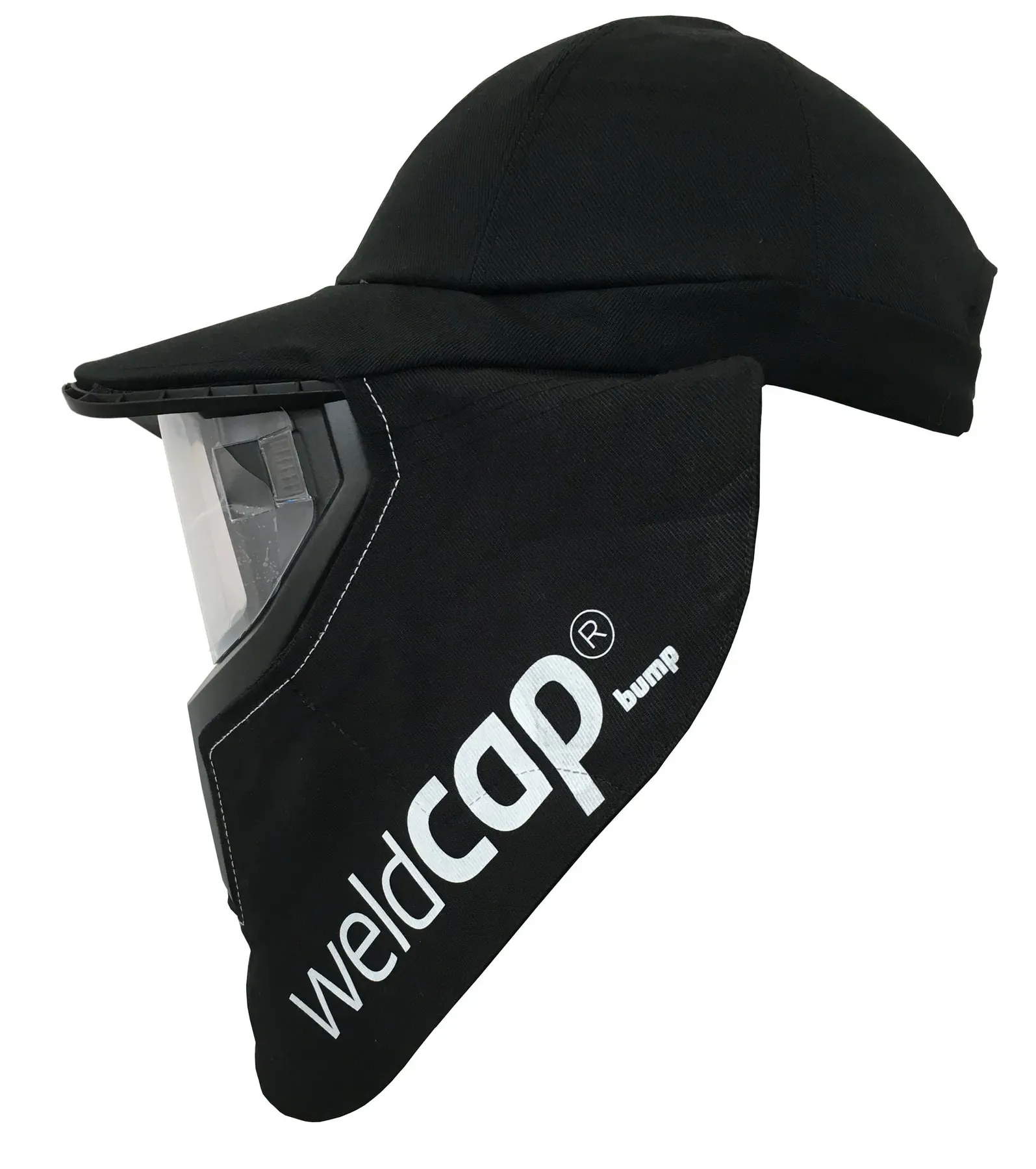

The weldcap bump is a super-lightweight welding cap with an auto-darkening filter and an integrated bump cap — for welders who also need to protect their head against bumps. Complete, it weighs 360 g. An ergonomic nose cut-out in the optical unit gives you a panoramic view, and the filter shows colours naturally (optical class 1/1/1/2 to EN 379).
The shade is adjustable steplessly between 9 and 12, and in the light state the filter is at shade 3 — with its grind mode, the weldcap bump also works well for grinding and plasma cutting. A wide-angle sensor detects the arc, and power comes from solar cells and two replaceable CR2032 batteries. The robust textile part, made of flame-retardant material, is quick to remove and easy to wash; it comes in black or green. For respiratory protection, combine the weldcap bump with a swiss air blower unit with control panel in a Ready-to-Weld package.
Technical data
- Classification EN379
- 1–1–1–2: Optical class = 1, Scattered light = 1, Homogeneity = 1, Angular dependence = 2
- Colour welding cap
- black, green
- Power supply
- Solar cells, 2 x replaceable 3 V button cell batteries (CR2032)
- Protection level (not activated)
- 3.0
- Protection levels (manual)
- 9–12
- Sensoric
- Wide-angle detection sensor
- Weight (complete helmet)
- 360 g
- Country of origin
- Switzerland
Technical data according to optrel AG. Images for illustration. Manufacturer's page
Respiratory protection for this helmet
Accessories
Bag for e3000/e3000X and PAPR helmet, black/green, with optrel logo
Helmet backpack for welding helmets and swiss air, black/green
Parking buddy — belt hook for weldcap and helmets with comfort headband
weldcap starter kit: 2 front cover lenses, inside cover lens, nose pad, 2 batteries
Battery cover for weldcap series (set of 2)
Consumables and spare parts
CR2032 battery for auto-darkening filters of sphere, liteflip, Y and weldcap series (set of 2)
Nose pad for weldcap series (set of 2)
Front cover lens for weldcap series (set of 5)
Inside cover lens for weldcap series (set of 5)
Replacement textile for weldcap hard, black (for hard hats)
Replacement textile for weldcap bump, black, with bump insert
Replacement textile for weldcap, brown/green (not for bump or hard)
Replacement auto-darkening filter for weldcap series (3/9–12)
More from this series weldcap
weldcapA super-lightweight welding cap (360 g) with a panoramic view, true colour filter and shade 9–12.
weldcap hardThe black weldcap version for mounting on a standard industrial safety helmet: panoramic view and shade 9–12.
Ready-to-Weld package weldcap bump + swiss airweldcap bump welding cap with integrated bump cap and the complete swiss air respiratory protection system with control panel.
Ready-to-Weld package weldcap + swiss airweldcap welding cap with a shade 9–12 cassette and the complete swiss air respiratory protection system with control panel.
Questions about this product?
We can help you choose the right helmet, filters and accessories — call or write to us.
