weldcapWelding helmet
weldcapauto-darkening welding cap
A super-lightweight welding cap (360 g) with a panoramic view, true colour filter and shade 9–12.
- Protection levels (manual)
- 9–12
- Protection level (not activated)
- 3.0
- Classification EN379
- 1–1–1–2
- Sensoric
- Wide-angle detection sensor
- Article number
- 1008.000
- EAN
- 7640127614587
- Pieces per pack
- Available in the shop centrumspawalnicze.pl — prices, availability and shipping in the shop
- In the range of centrumspawalnicze.pl — prices, availability and shipping in the shop
- On order — order from us by phone or email, we reply within one business day
- Genuine optrel product from the authorised distributor SPIDWELD, with the manufacturer's warranty
- Technical advice: Mon–Fri 7:30–15:30 (CET), +48 530 009 555
Highlights
- Complete cap weighs 360 g
- Panoramic view thanks to an ergonomic nose cut-out
- Stepless shade adjustment 9–12, light state 3
- Optical class 1/1/1/2, true colour filter
- Flame-retardant, removable and washable textile part
- Grind mode; suited to grinding and plasma cutting
Overview

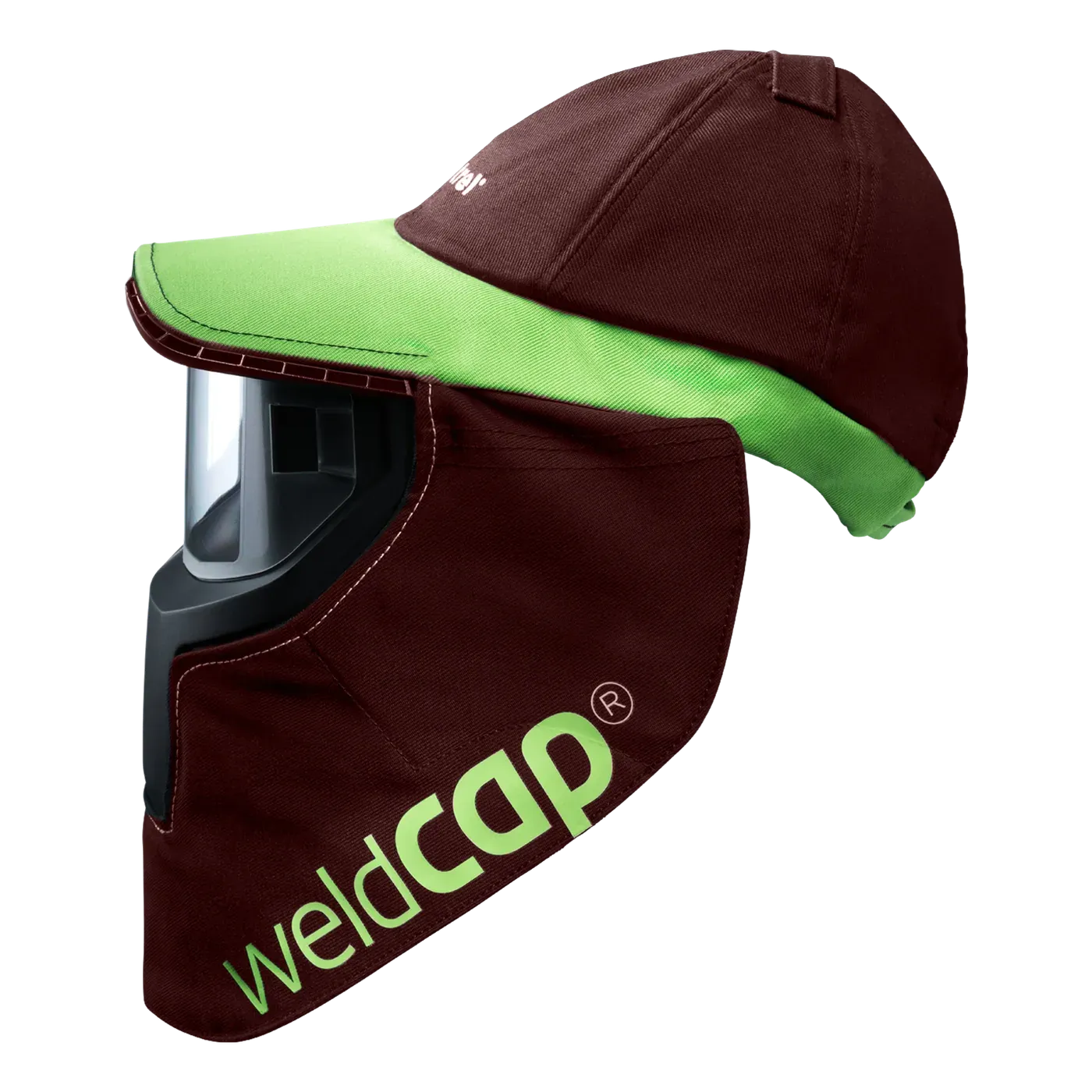

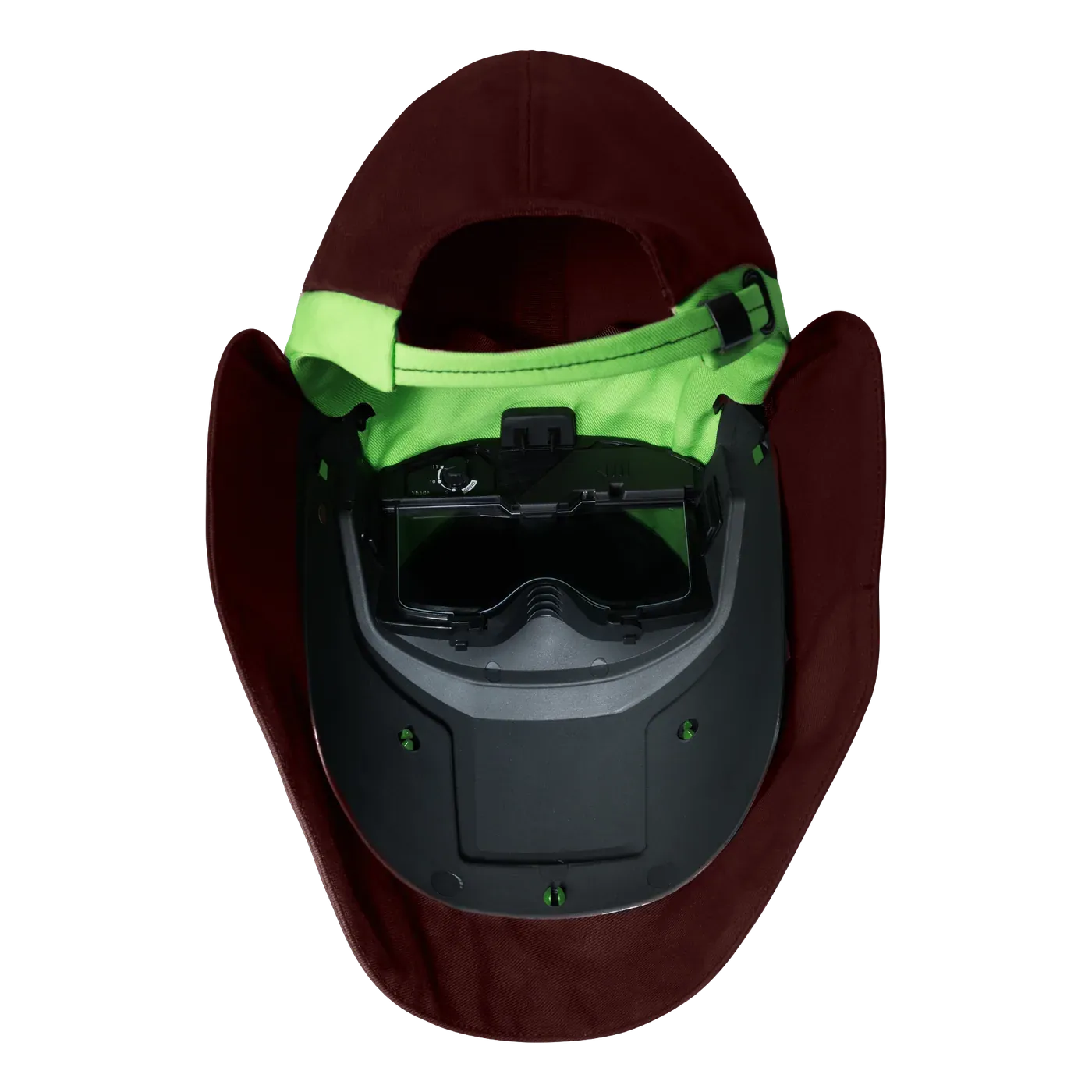

The weldcap is a super-lightweight, very comfortable welding cap with an auto-darkening filter — complete, it weighs 360 g. An ergonomic nose cut-out in the optical unit gives you a panoramic view, and the filter shows colours naturally; the optical class to EN 379 is 1/1/1/2.
The shade is adjustable steplessly between 9 and 12, covering a wide range of welding applications. In the light state the filter is at shade 3, and thanks to the clear view and grind mode the weldcap also works well for grinding and plasma cutting. A wide-angle sensor detects the arc, and the filter is powered by solar cells and two replaceable CR2032 batteries.
The robust textile part, made of flame-retardant material, is quick to remove and easy to wash; on this version it is brown. The weldcap family also includes the weldcap bump with an integrated bump cap and the weldcap hard for mounting on an industrial safety helmet. The weldcap is also available in a Ready-to-Weld package.
Technical data
- Classification EN379
- 1–1–1–2: Optical class = 1, Scattered light = 1, Homogeneity = 1, Angular dependence = 2
- Colour of welding helmet
- brown
- Power supply
- Solar cells, 2 x replaceable 3 V button cell batteries (CR2032)
- Protection level (not activated)
- 3.0
- Protection levels (manual)
- 9–12
- Sensoric
- Wide-angle detection sensor
- Weight (complete helmet)
- 360 g
- Country of origin
- Switzerland
Technical data according to optrel AG. Images for illustration. Manufacturer's page
Respiratory protection for this helmet
Accessories
Helmet backpack for welding helmets and swiss air, black/green
Battery cover for weldcap series (set of 2)
Bag for e3000/e3000X and PAPR helmet, black/green, with optrel logo
weldcap starter kit: 2 front cover lenses, inside cover lens, nose pad, 2 batteries
Parking buddy — belt hook for weldcap and helmets with comfort headband
Consumables and spare parts
Inside cover lens for weldcap series (set of 5)
CR2032 battery for auto-darkening filters of sphere, liteflip, Y and weldcap series (set of 2)
Nose pad for weldcap series (set of 2)
Front cover lens for weldcap series (set of 5)
Replacement auto-darkening filter for weldcap series (3/9–12)
Replacement textile for weldcap hard, black (for hard hats)
Replacement textile for weldcap, brown/green (not for bump or hard)- Replacement textile for weldcap bump, black, with bump insert
Videos
1:07optrel weldcap with Urs ErbacherWatch on YouTube
6:02optrel weldcap CEO introductionWatch on YouTube
1:46optrel weldcap instruction guideWatch on YouTube
More from this series weldcap
weldcap bumpA super-lightweight welding cap with an integrated bump cap, a panoramic view and shade 9–12.
weldcap hardThe black weldcap version for mounting on a standard industrial safety helmet: panoramic view and shade 9–12.
Ready-to-Weld package weldcap bump + swiss airweldcap bump welding cap with integrated bump cap and the complete swiss air respiratory protection system with control panel.
Ready-to-Weld package weldcap + swiss airweldcap welding cap with a shade 9–12 cassette and the complete swiss air respiratory protection system with control panel.
