liteflipPAPR welding helmet

liteflip autopilot PAPRauto-darkening PAPR welding helmet with air supply

A super-lightweight flip-up PAPR helmet: automatic shade 5–14, a clear view for grinding, for use with e3000X or suppliedair.

Protection levels (automatic): 5–14
Protection level (not activated): 4.0
Classification EN379: 1–1–1–2
Sensoric: 3 sensors

Article number: 4441.700
EAN: 7640127615829
Pieces per pack

Available in the shop centrumspawalnicze.pl — prices, availability and shipping in the shop
In the range of centrumspawalnicze.pl — prices, availability and shipping in the shop
On order — order from us by phone or email, we reply within one business day
Genuine optrel product from the authorised distributor SPIDWELD, with the manufacturer's warranty
Technical advice: Mon–Fri 7:30–15:30 (CET), +48 530 009 555

Highlights

Air duct and face seal — for e3000X or suppliedair
Flip-up design: grind with a clear view
ShadeTronic®: automatic shade 5–14, light state 4
UV/IR filter with true colour view
3 sensors, “Super High” sensitivity range, FadeTronic
730 g, interchangeable side panels

Overview

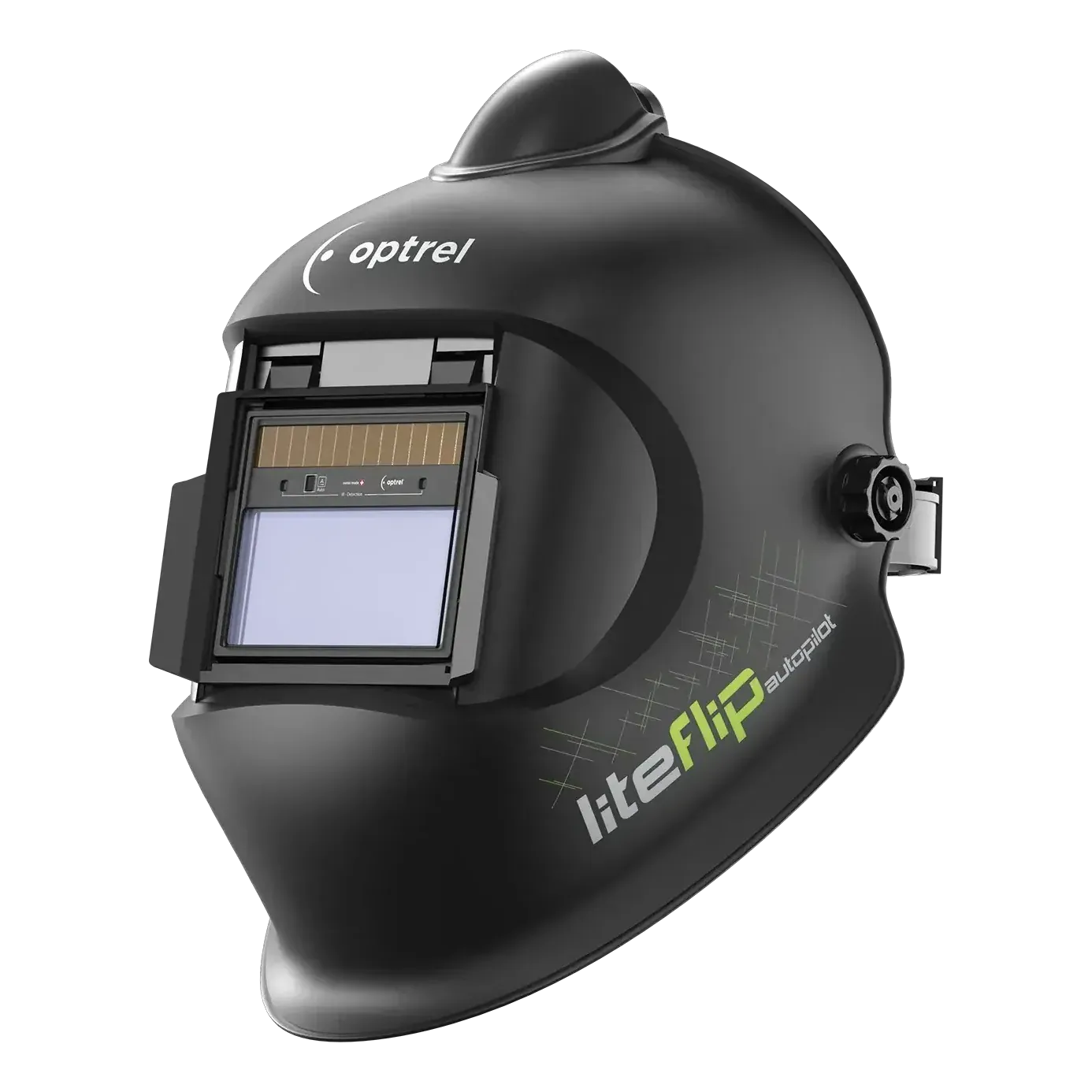

The liteflip autopilot PAPR is a super-lightweight auto-darkening PAPR welding helmet with a flip-up design. It has an air duct and a face seal, and the air is distributed comfortably inside the helmet. It works with the e3000X blower unit or the suppliedair compressed air system.

You weld through the auto-darkening filter, then flip it up to grind with a clear view — with your respiratory protection in place throughout. ShadeTronic® selects the shade automatically between 5 and 14, the light state is shade 4, and a specially developed UV/IR filter provides true colour view. Three sensors, stepless sensitivity adjustment with a “Super High” range and FadeTronic, which brightens the filter smoothly after welding, complete the package. Optical class to EN 379: 1/1/1/2.

The helmet weighs 730 g. The patented eccentric mechanism and the comfort headband help you fit it and relieve your neck, while interchangeable side panels let you personalise it. The filter is powered by solar cells and two replaceable CR2032 batteries.

Technical data

Classification EN379: 1–1–1–2: Optical class = 1, Scattered light = 1, Homogeneity = 1, Angular dependence = 2
Colour of knobs: black
Colour of welding helmet: black
Power supply: Solar cells, 2 x replaceable 3 V button cell batteries (CR2032)
Protection level (not activated): 4.0
Protection levels (automatic): 5–14
Sensitivity adjustement: continuously, with “Super High” sensitivity range
Sensoric: 3 sensors
Weight: 730 g / 25.75 oz
Country of origin: Switzerland
