e3000XRespiratory protection
e3000Xpowered air-purifying respirator (ATEX)
TH3 blower unit for powered air helmets: up to 240 l/min of air, up to 18 hours of battery life and ATEX certification for zones 2 and 22.
- Article number
- 4553.000
- EAN
- 7640127618103
- Pieces per pack
- Available in the shop centrumspawalnicze.pl — prices, availability and shipping in the shop
- In the range of centrumspawalnicze.pl — prices, availability and shipping in the shop
- On order — order from us by phone or email, we reply within one business day
- Genuine optrel product from the authorised distributor SPIDWELD, with the manufacturer's warranty
- Technical advice: Mon–Fri 7:30–15:30 (CET), +48 530 009 555
Highlights
- TH3 respiratory protection against smoke, aerosols and dust
- Up to 240 l/min of air and up to 18 hours on a single battery
- Automatic three-stage airflow control with sensor and calibration
- Filter saturation alarm with automatic switch to a lower airflow level
- Optional A1B1E1 gas filter and mountain breeze odour filter
- ATEX certified for zones 2 and 22
Overview
e3000X is a powered air-purifying respirator (PAPR) for optrel powered air helmets. It provides respiratory protection of the highest class, TH3, against respirable particles — smoke, aerosols and dust. An integrated airflow sensor and automatic three-stage control keep the set airflow constant, and every time you switch it on, the unit calibrates the airflow and shows the battery status.
The unit delivers up to 240 litres of air per minute and runs for up to 18 hours on one battery. When the filter becomes saturated at the current airflow level, e3000X gives an audible alarm and automatically switches to the next lower level — without interrupting your work.

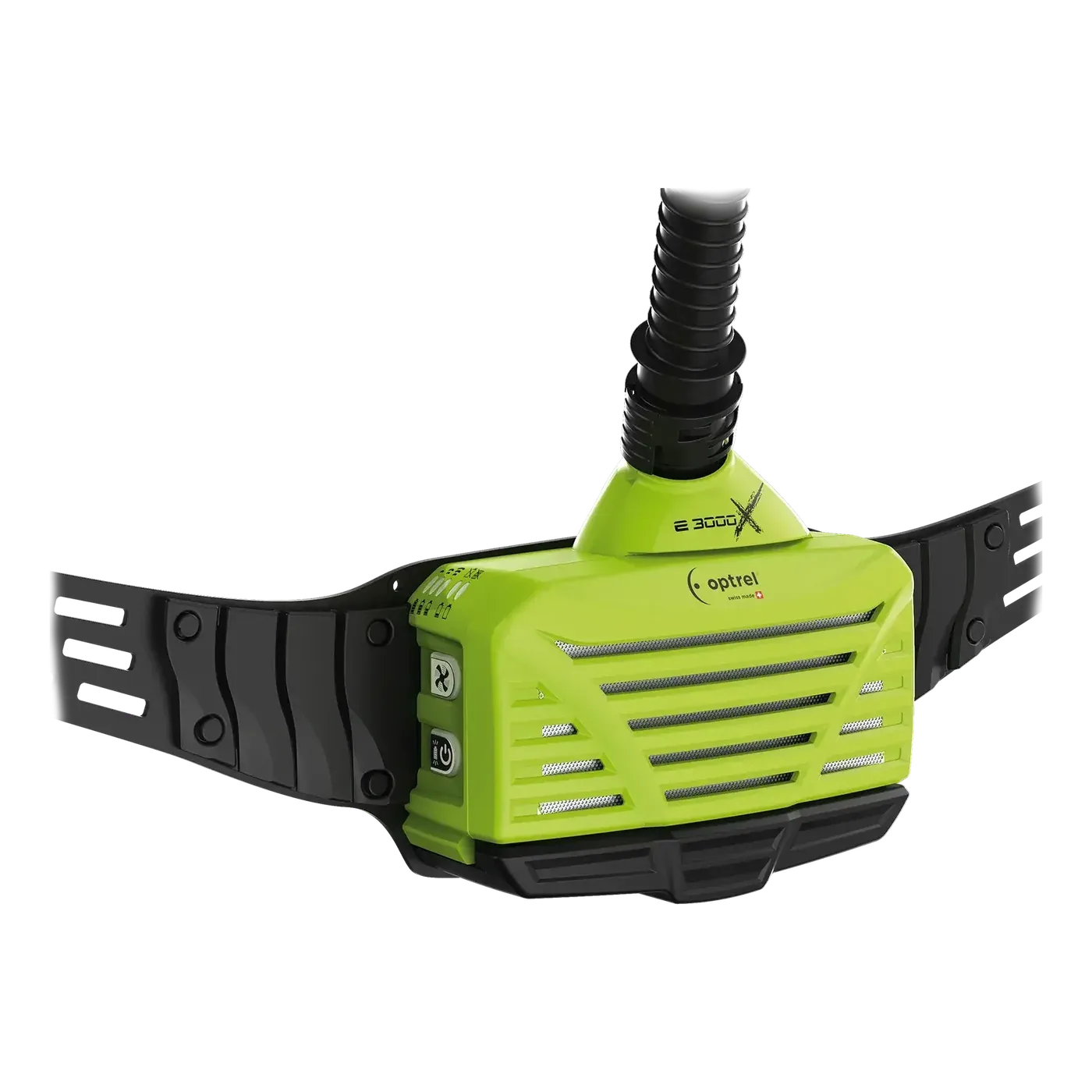

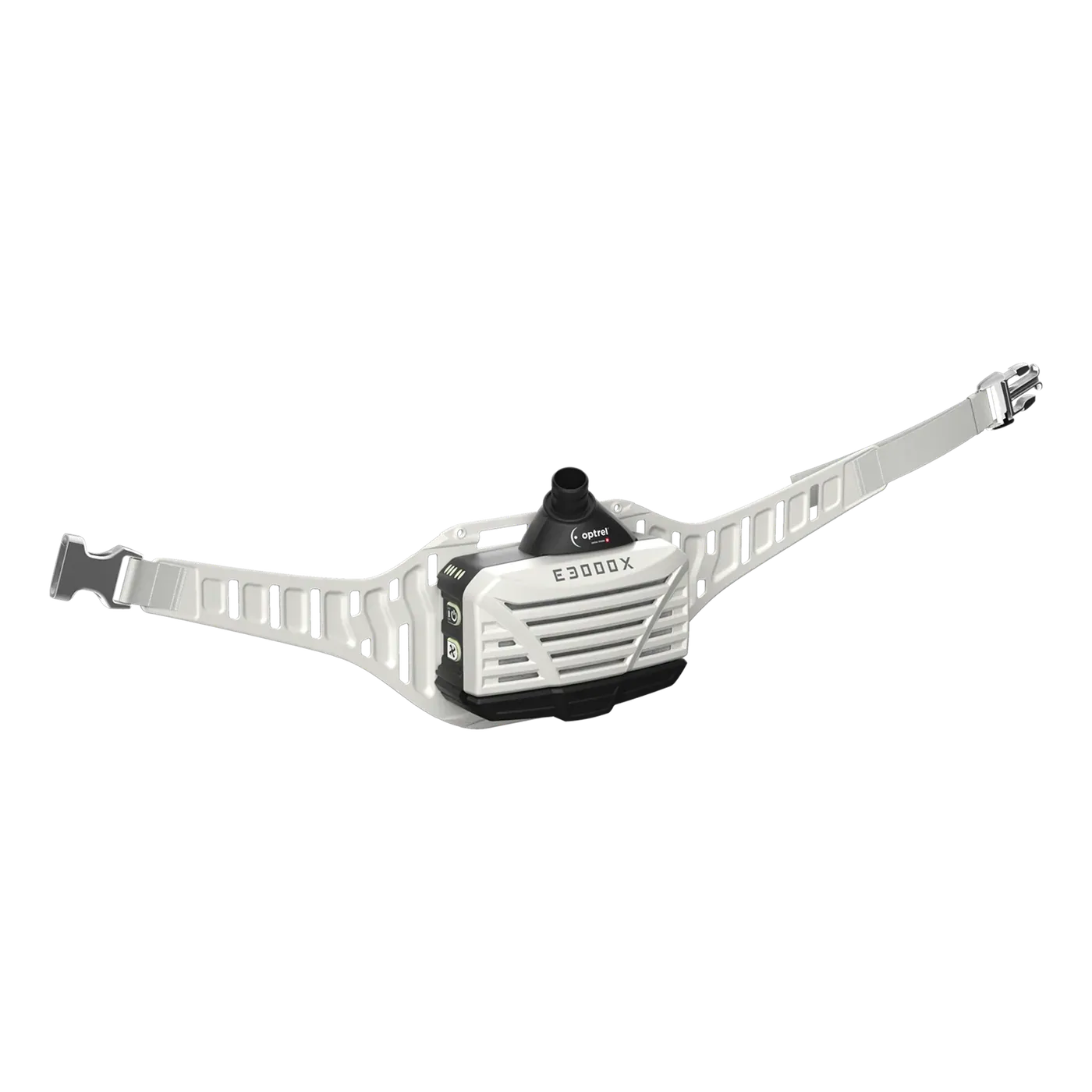

A TH3P particle filter with pre-filter is included. An A1B1E1 gas filter and the mountain breeze activated carbon odour filter are available as options. The unit is ATEX certified for zones 2 and 22. The green version comes with belt, air hose, parking buddy and transport bag; the white version is the blower unit only.
e3000X must not be used in atmospheres immediately dangerous to life or health (IDLH), in atmospheres with less than 17% oxygen, or where the concentration of toxic substances requires a higher protection class.
Technical data
- Colour
- green / white
- Country of origin
- Switzerland
Technical data according to optrel AG. Images for illustration. Manufacturer's page
Packages with this product
Ready-to-Weld package crystal2.0 PAPR + e3000Xcrystal2.0 PAPR welding helmet (silver or black) with a ShadeTronic® 4–12 cassette and the e3000X (ATEX) blower unit.
Ready-to-Weld upgrade package crystal2.0 PAPR + e3000XUpgrade package: silver crystal2.0 PAPR helmet shell without an auto-darkening cassette, plus the e3000X (ATEX) blower unit.
Ready-to-Weld package sphereX pure air clt + e3000XsphereX pure air clt PAPR welding helmet with crystal lens technology (CLT) and the e3000X (ATEX) blower unit with 18h Power battery.
Ready-to-Weld package e684 PAPR + e3000XSilver e684 PAPR welding helmet and the e3000X (ATEX) blower unit with 18h Power battery, parking buddy and bag.
Ready-to-Weld upgrade package e684 PAPR silver + e3000XUpgrade package: silver e684 PAPR helmet shell without cassette and the e3000X (ATEX) blower unit with 18h Power battery.
Ready-to-Weld upgrade package e684 PAPR black + e3000XUpgrade package: black e684 PAPR helmet shell without cassette and the e3000X (ATEX) blower unit with 18h Power battery.
Ready-to-Weld package sphereX pure air quattro + e3000XBlack sphereX pure air quattro PAPR welding helmet and the e3000X (ATEX) blower unit with 18h Power battery – a complete welding set.
Ready-to-Weld package panoramaxx pure air 2.5 + e3000Xpanoramaxx pure air 2.5 PAPR welding helmet with a Panorama-XXL field of view and the e3000X (ATEX) blower unit with 18h Power battery.
Ready-to-Weld package panoramaxx pure air quattro + e3000XBlack panoramaxx pure air quattro PAPR welding helmet with a Panorama-XXL field of view, packaged with the e3000X (ATEX) blower unit.
Ready-to-Weld package panoramaxx pure air clt black + e3000XBlack panoramaxx pure air clt PAPR helmet (CLT, Panorama-XXL) with the e3000X (ATEX) blower unit and 18h Power battery.
Ready-to-Weld package panoramaxx pure air clt silver + e3000XSilver panoramaxx pure air clt PAPR helmet (CLT, Panorama-XXL) with the e3000X (ATEX) blower unit and 18h Power battery.
Ready-to-Weld package helix pure air 2.5 + e3000Xhelix pure air 2.5 PAPR welding and grinding helmet with the e3000X (ATEX) blower unit – with or without an industrial safety helmet.- Ready-to-Weld package helix pure air quattro + e3000Xhelix pure air quattro with a ShadeTronic® 4–13 cassette and the e3000X (ATEX) blower unit – with or without an industrial safety helmet.
- Ready-to-Weld package helix pure air clt + e3000Xhelix pure air clt with crystal lens technology (CLT) and the e3000X (ATEX) blower unit – with or without an industrial safety helmet.
Ready-to-Weld package panoramaxx pure air hybrid + e3000Xpanoramaxx pure air hybrid PAPR helmet for welding and laser work, with the e3000X (ATEX) blower unit and 18h Power battery.
Ready-to-Weld package panoramaxx pure air hybrid clt + e3000Xpanoramaxx pure air hybrid clt (CLT) PAPR helmet for welding and laser work, with the e3000X (ATEX) blower unit.
Ready-to-Clean package panoramaxx pure air L + e3000Xpanoramaxx pure air L PAPR laser helmet with the e3000X (ATEX) blower unit and 18h Power battery – a package for laser cleaning.
Ready-to-Weld package vegaview2.5 PAPR + e3000XBlack vegaview2.5 PAPR welding helmet and the e3000X (ATEX) blower unit with 18h Power battery – a complete welding set.
Ready-to-Weld upgrade package vegaview2.5 PAPR + e3000XUpgrade package: black vegaview2.5 PAPR helmet shell without cassette and the e3000X (ATEX) blower unit.
Ready-to-Weld package sphereX pure air 2.5 + e3000XsphereX pure air 2.5 PAPR welding helmet packaged with the e3000X (ATEX) blower unit, 18h Power battery and e3000/X bag.
Ready-to-Grind package clearmaxx PAPR + e3000Xclearmaxx PAPR grinding helmet and the e3000X (ATEX) blower unit with 18h Power battery – a grinding package.- Ready-to-Protect package clearmaxx PAPR black + e3000XBlack clearmaxx PAPR helmet with HALO comfort pad and the e3000X (ATEX) blower unit with 18h Power battery.
Ready-to-Protect package clearmaxx PAPR white + e3000XWhite clearmaxx PAPR helmet with HALO comfort pad and a black/white e3000X blower unit, supplied with a medical instruction booklet.
Ready-to-Weld package liteflip autopilot PAPR + e3000XSilver liteflip autopilot PAPR welding helmet and the e3000X blower unit with 18h Power battery, parking buddy and bag.
Accessories
Shoulder harness for e3000X, green
e3000X air hose holder, black — for all optrel PAPR helmets

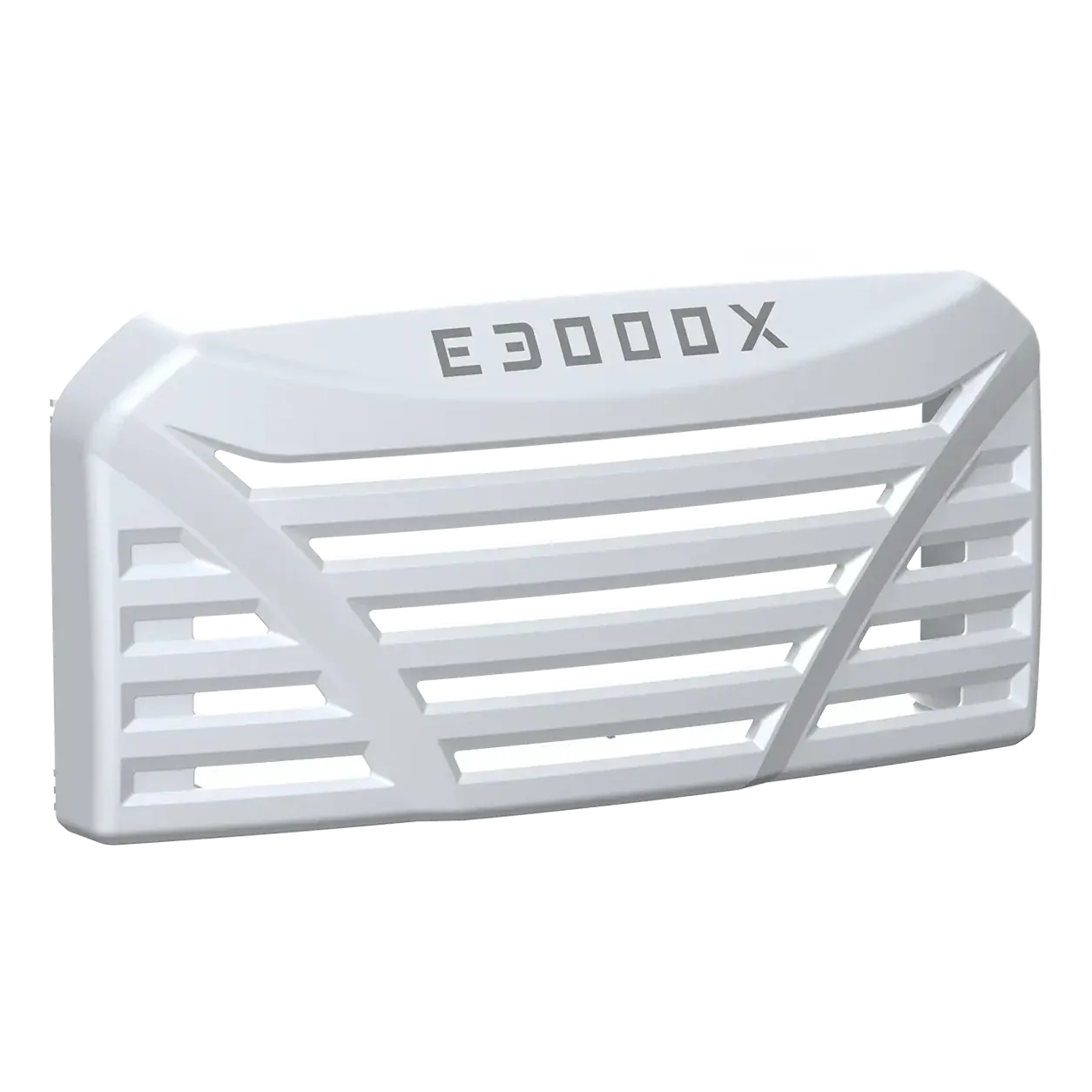

Filter cover for e3000X, white, with pad print

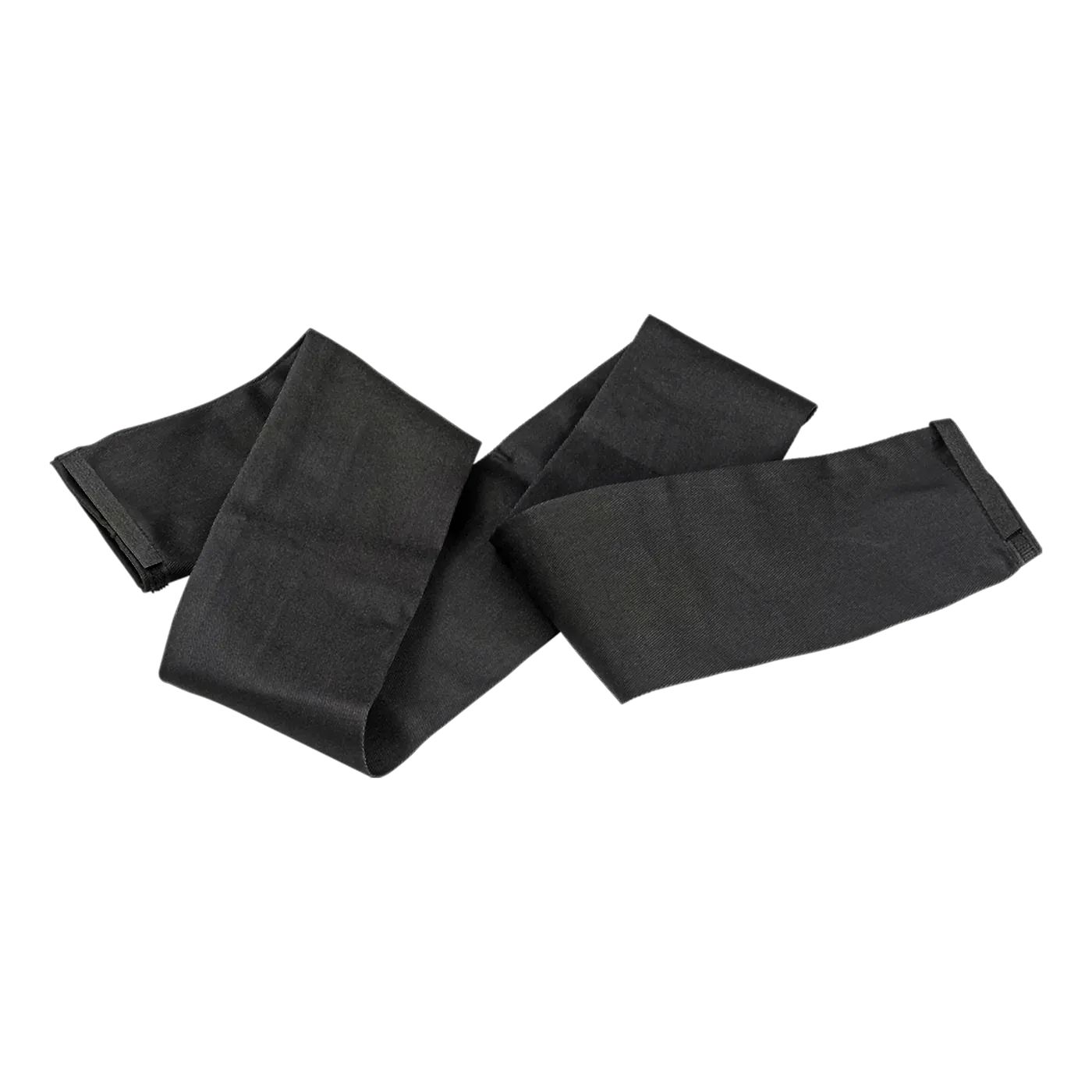

Fabric protective cover for e3000X air hose

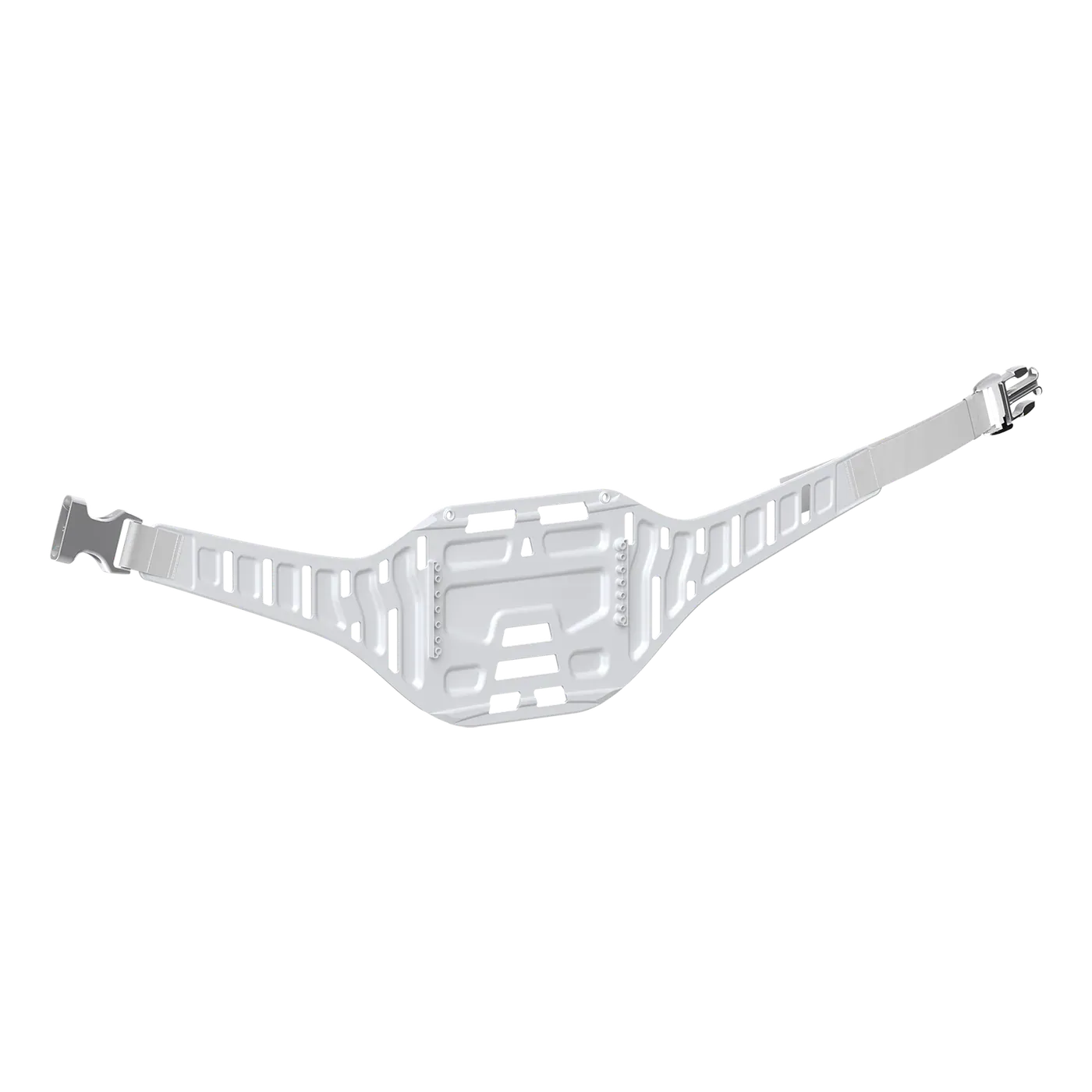

Plastic belt for e3000X, white

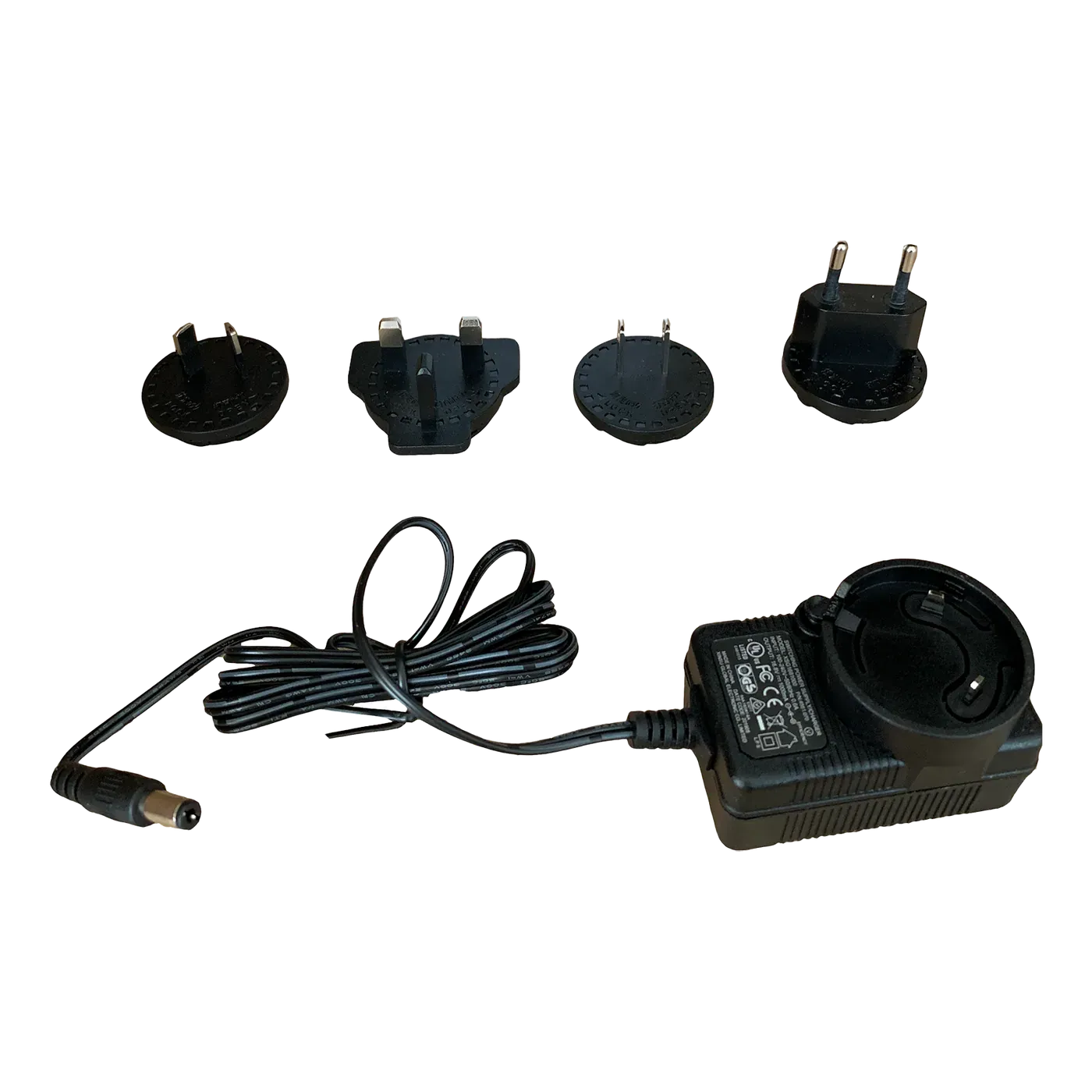

Charger for e3000X with all plugs (CH/EU/AUS/UK/US)

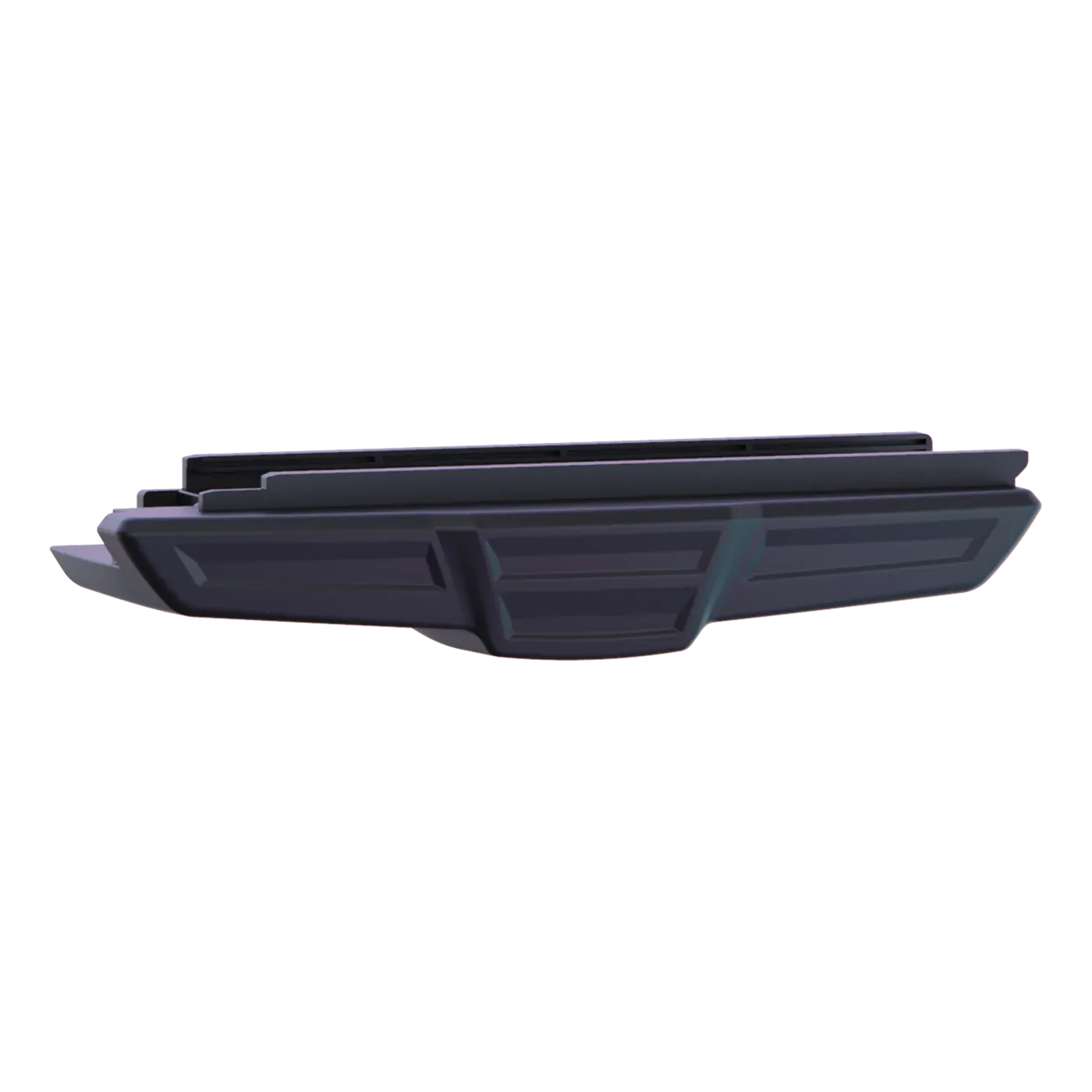

Rechargeable battery for e3000X (18 hours)
Bag for e3000/e3000X and PAPR helmet, black/green, with optrel logo

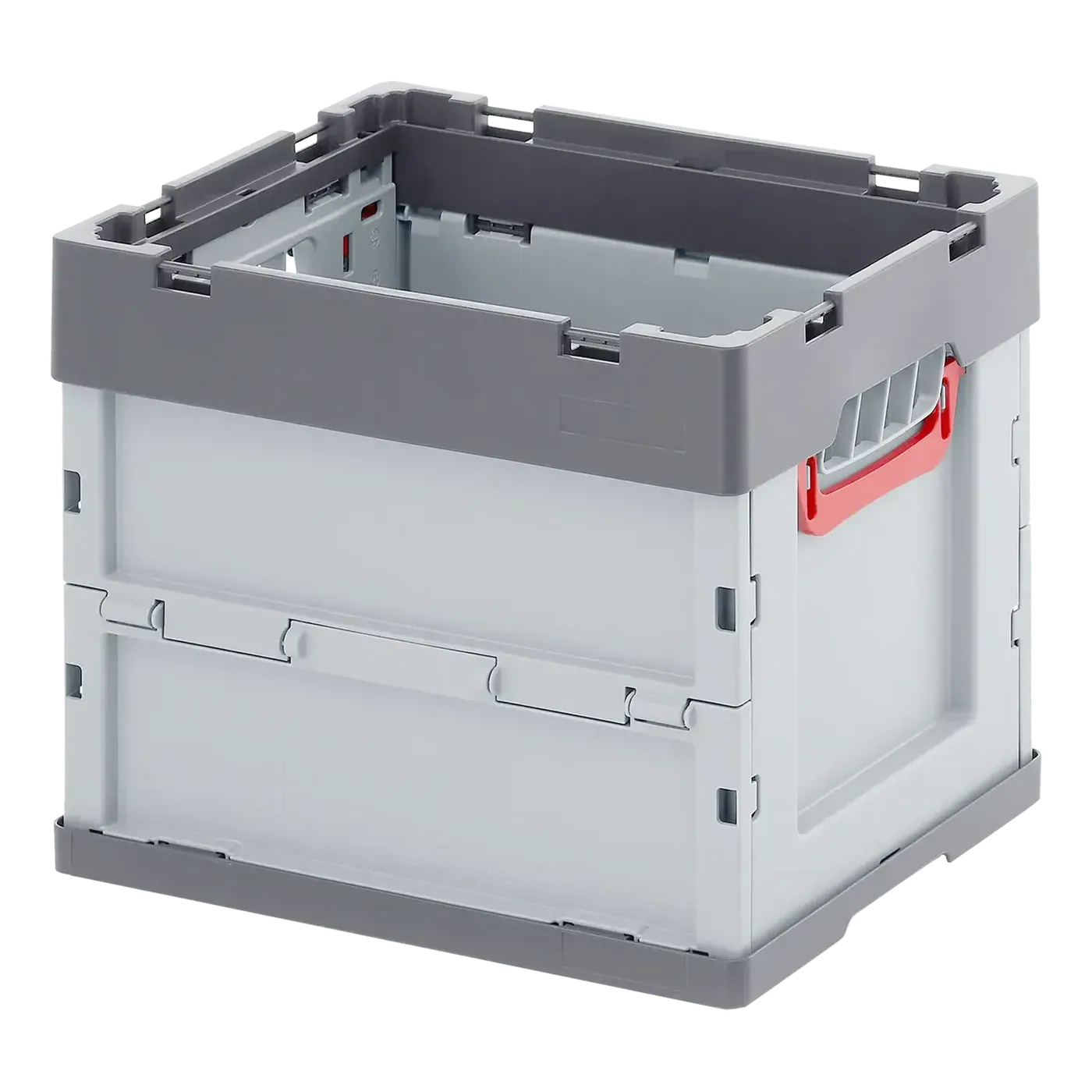

Folding storage box with lid for e3000X, grey

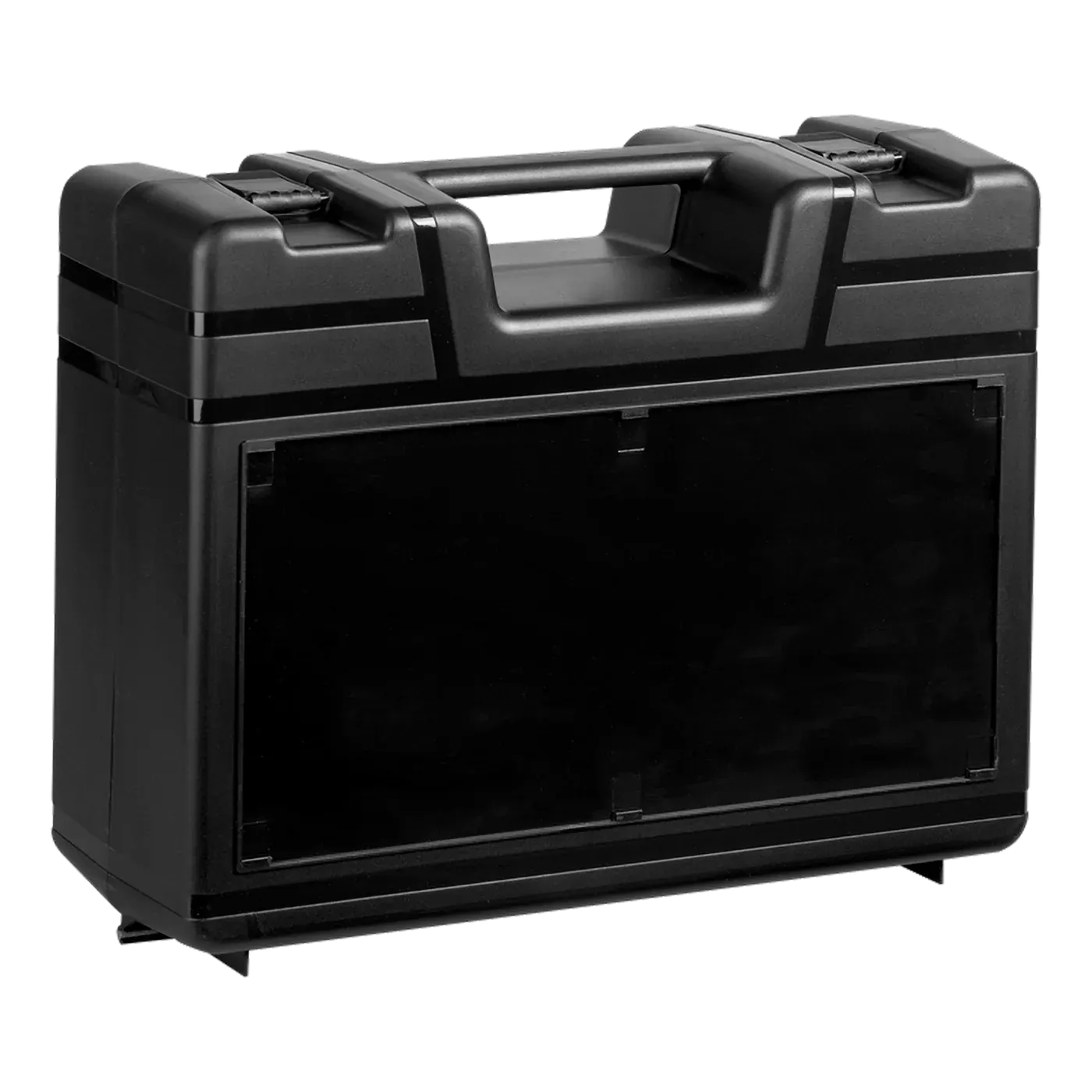

Hard-shell case for e3000X, black- Multi-charging station for six e3000X batteries, EU plug

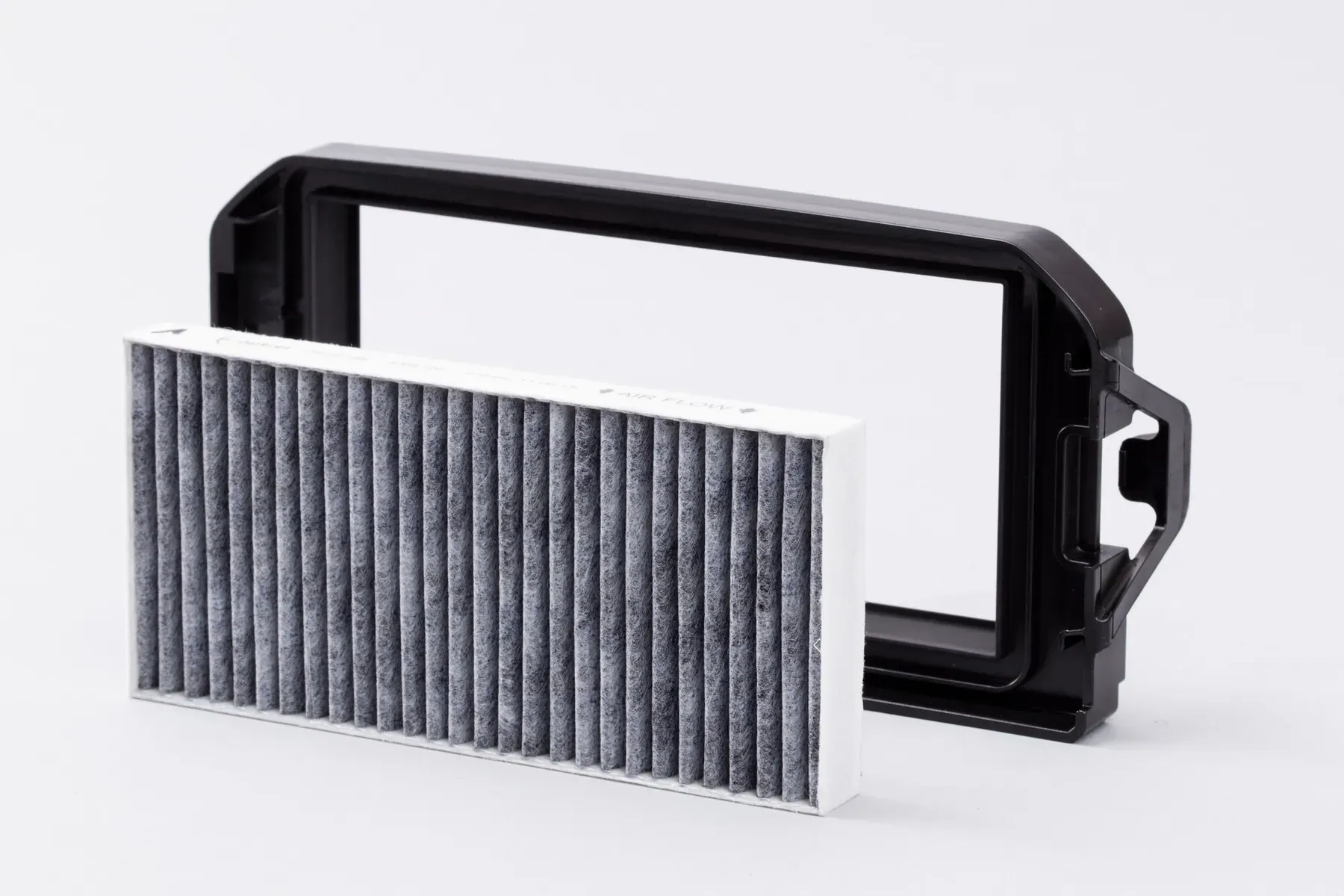

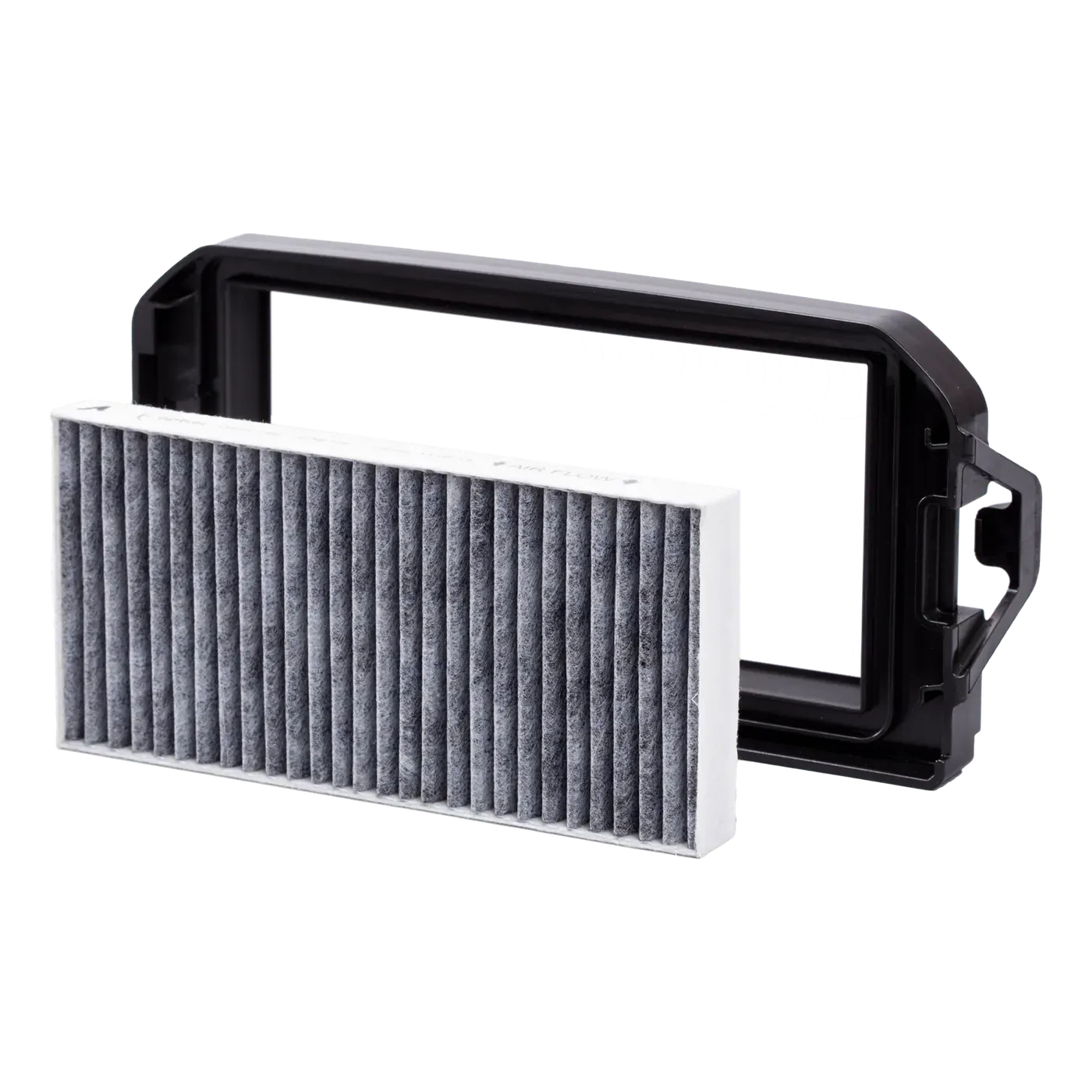

Mountain Breeze odour filter starter kit for e3000X (filter frame + activated carbon filter)

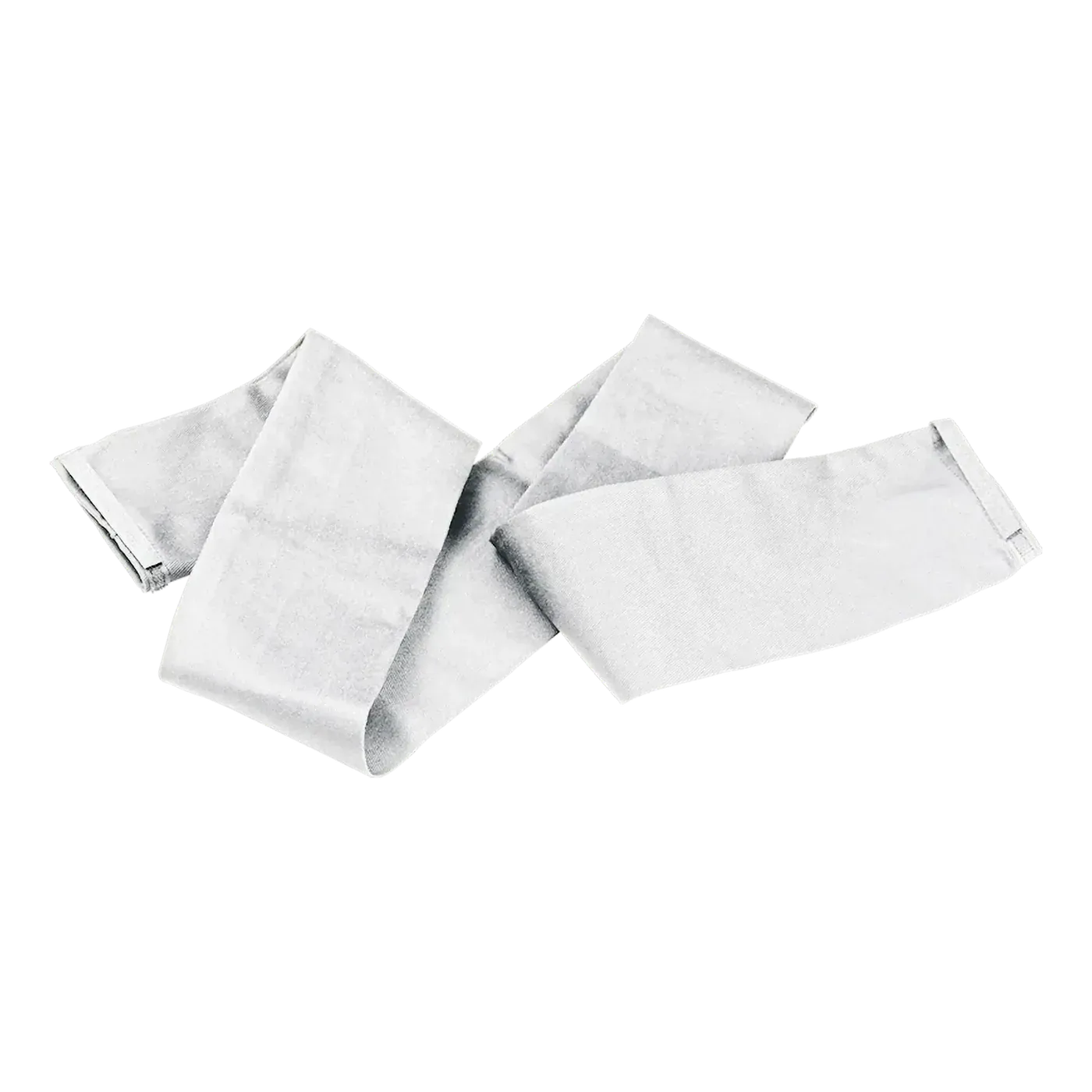

Fabric protective cover for e3000X air hose, white
Consumables and spare parts

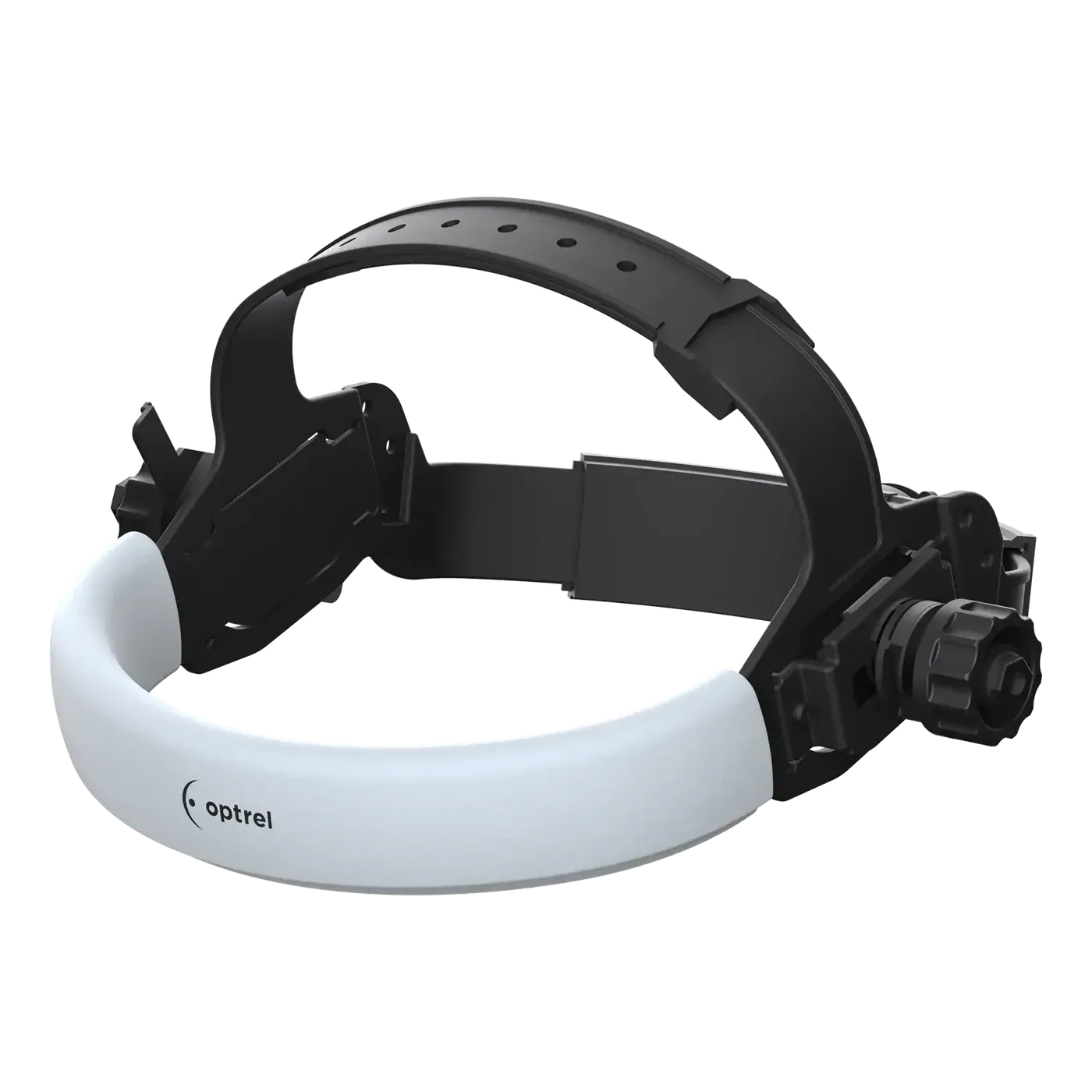

Comfort headband, black/white — for panoramaxx, sphere, liteflip and Y series
Locking clip for e3000X filter cover
A1B1E1 gas filter for e3000X

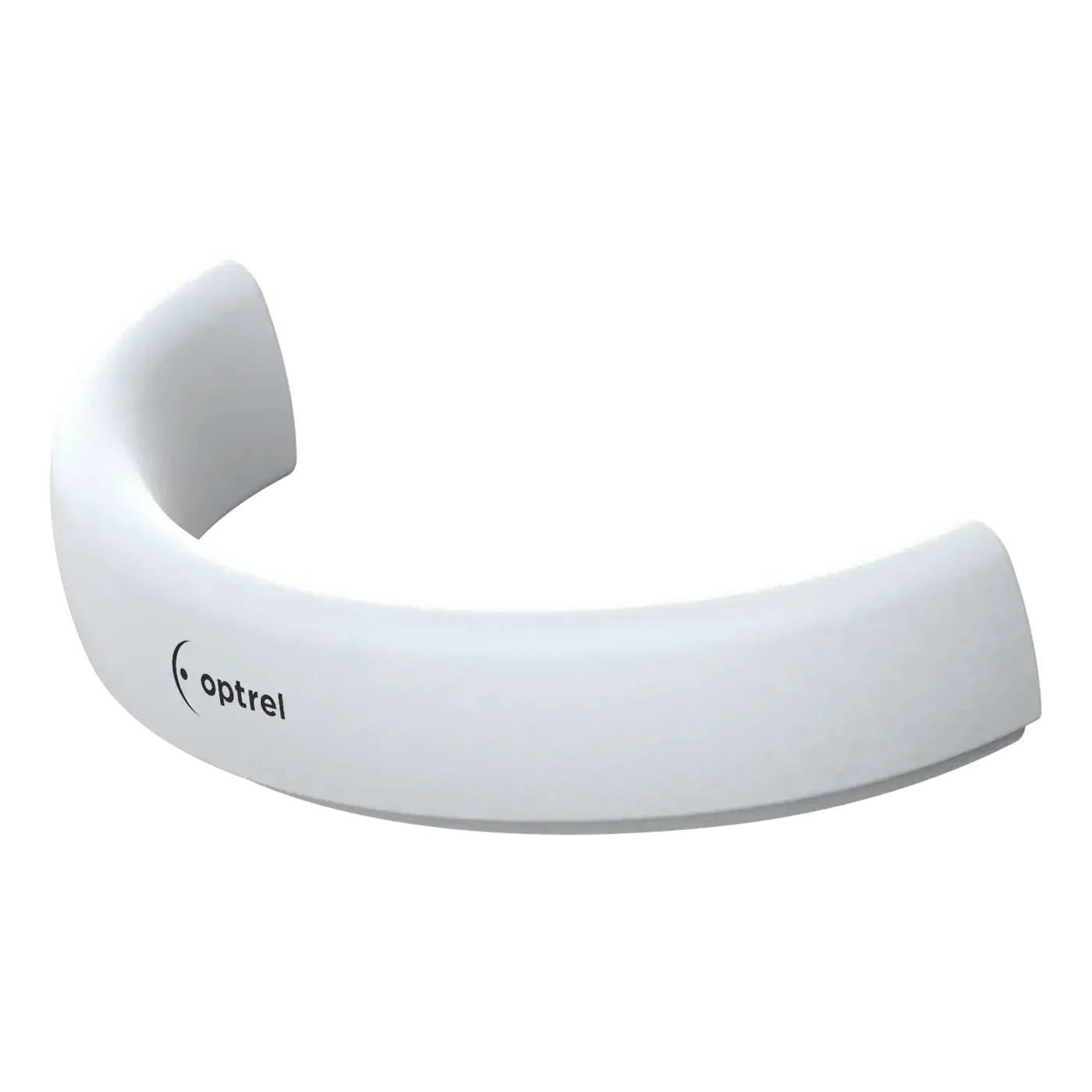

Rear comfort band, white, for optrel comfort headband (set of 2)

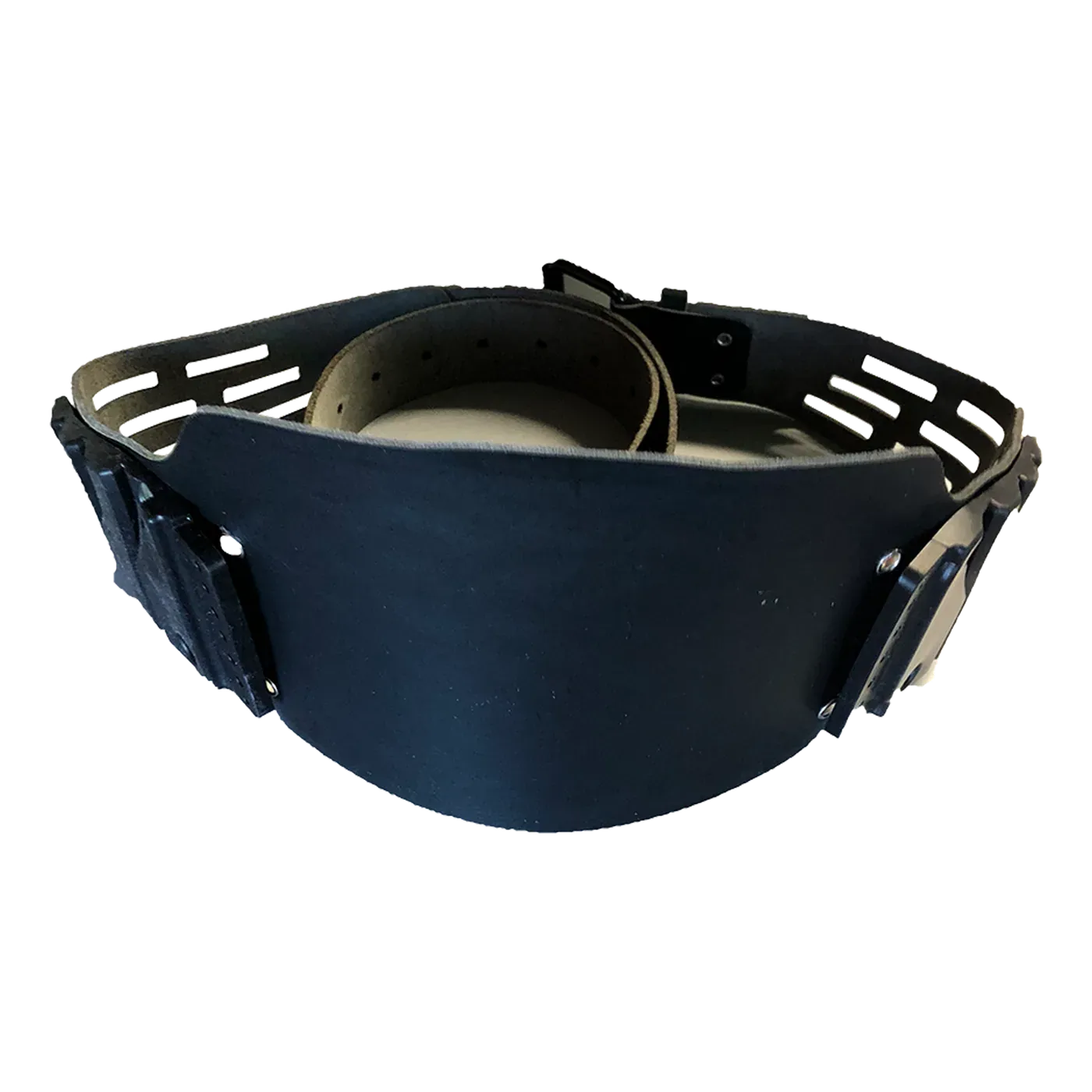

Replacement leather belt for e3000X, black

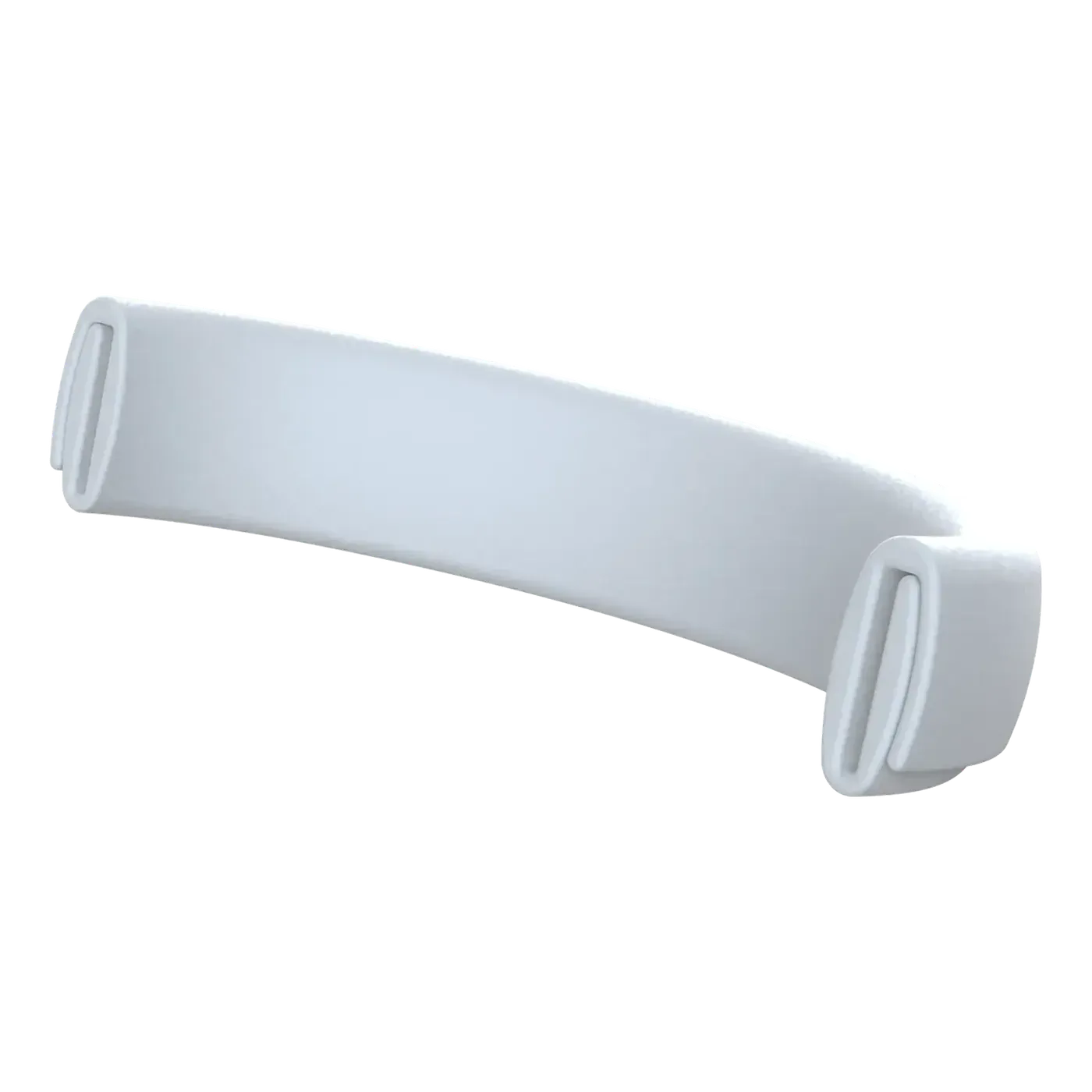

Cotton sweatband, white, for optrel comfort headband (set of 2)

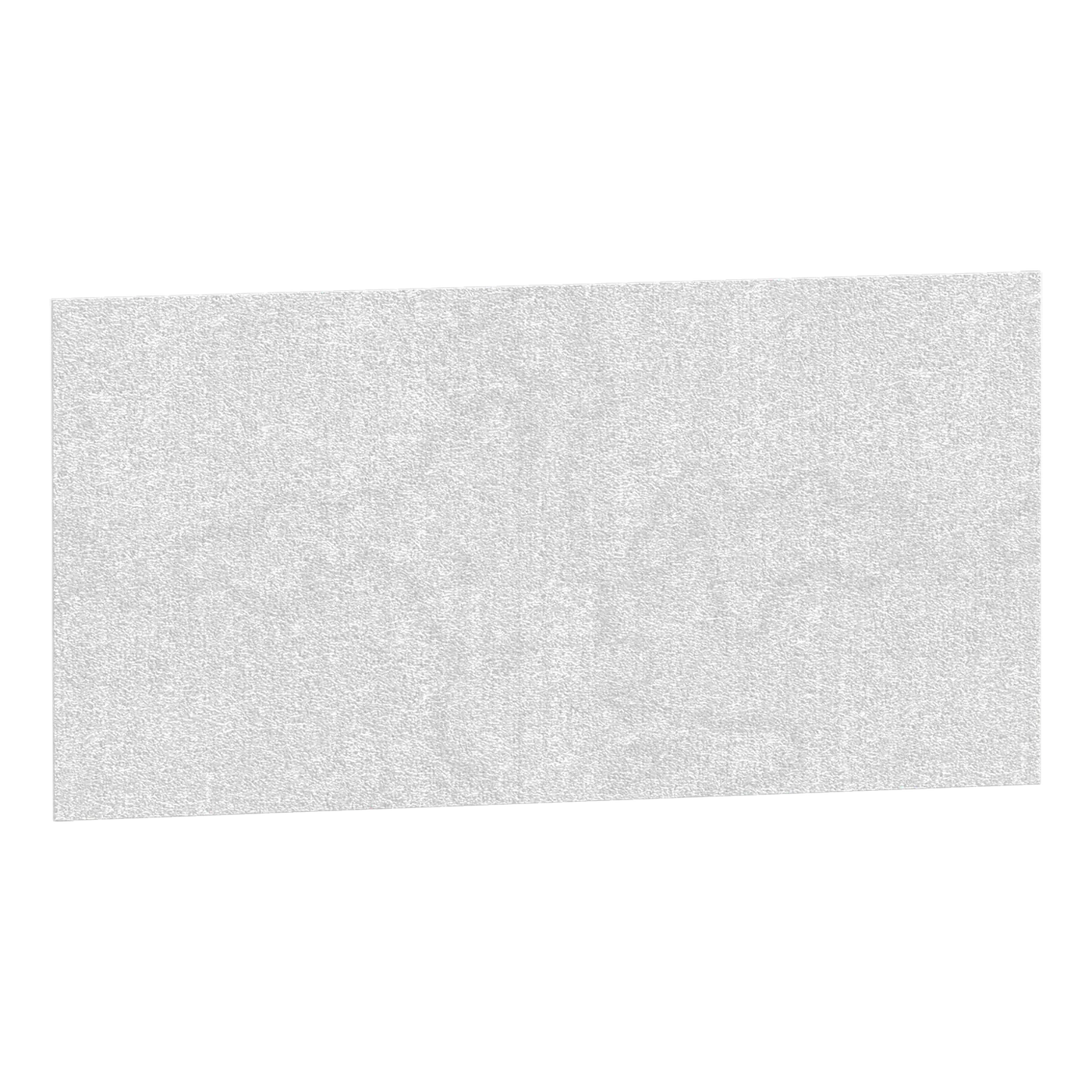

Particle pre-filter for e3000X (set of 50)

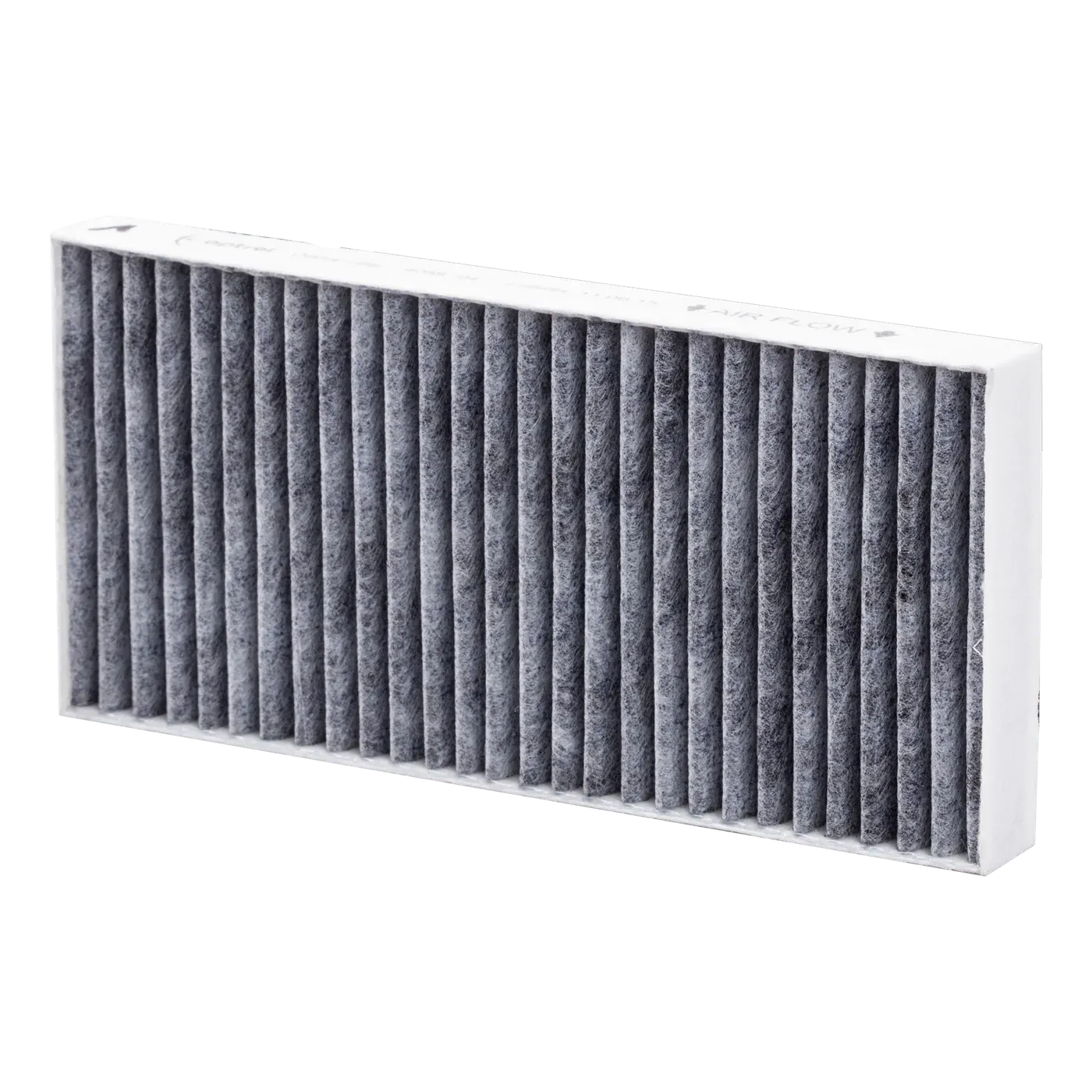

Mountain Breeze activated carbon odour filter for e3000/e3000X
Filter cover for e3000X, green

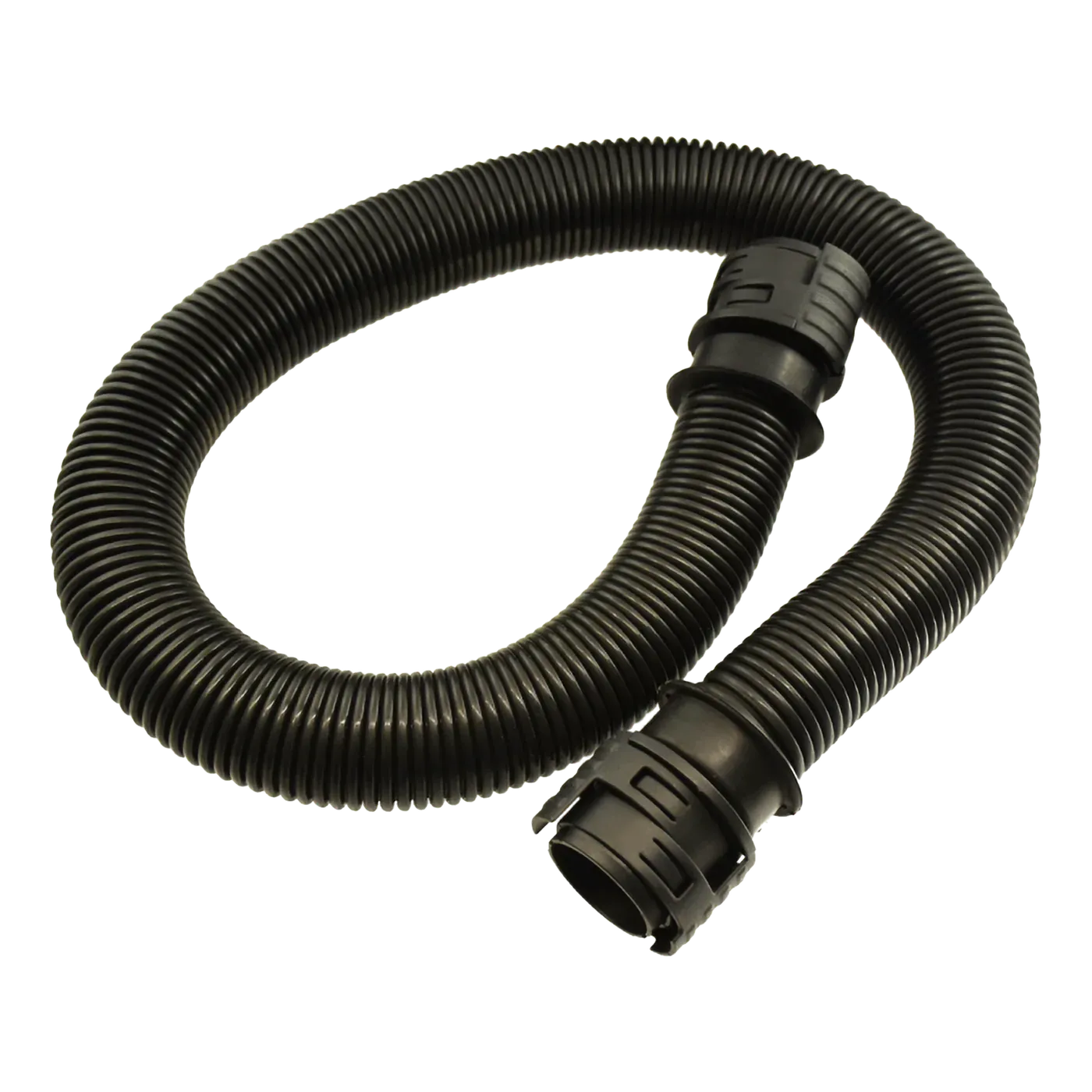

Flexible air hose for e3000X

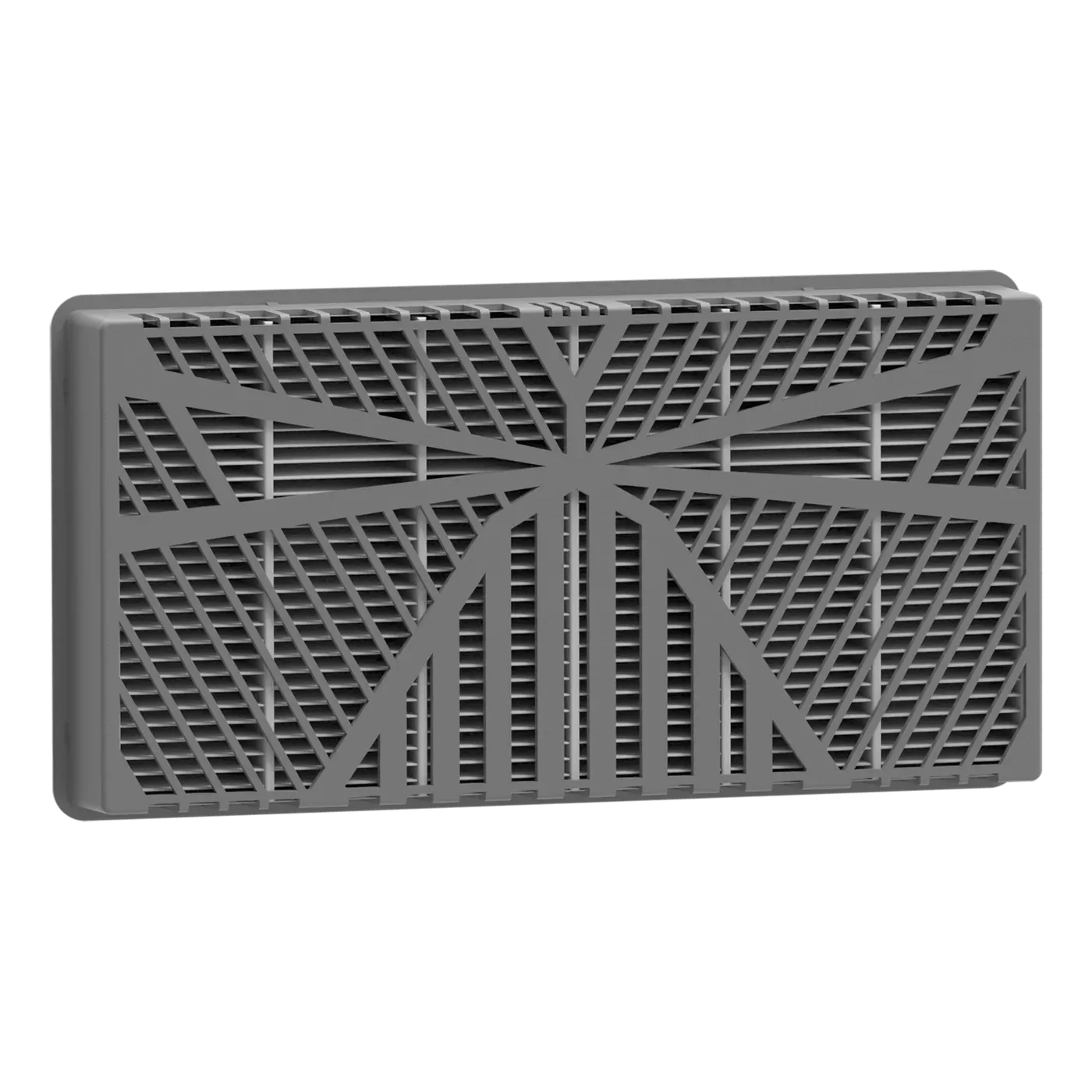

TH3P particle master filter for e3000X, with pre-filter

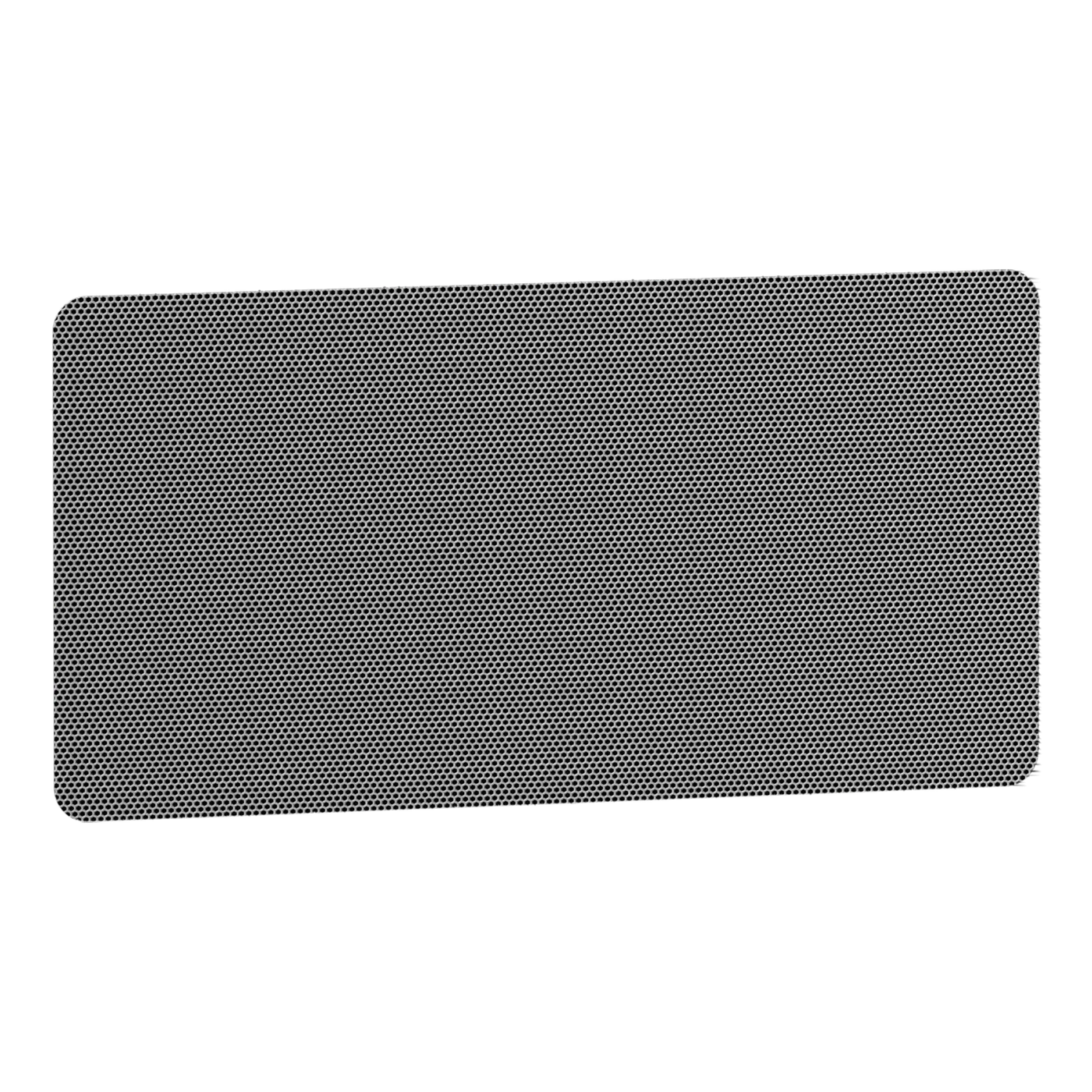

Spark guard for e3000X filter (set of 2)
