panoramaxxPAPR welding helmet

panoramaxx pure air 2.5auto-darkening PAPR welding helmet

PAPR welding helmet for e3000/X or suppliedair, with a Panorama-XXL field of view, ShadeTronic® 5–12 and grind mode.

Protection levels (automatic): 5–12
Protection levels (manual): 7–12
Protection level (not activated): 2.5
Classification EN379: 1–1–1–2

Helmet version

quattro2.5clt

Article number: 4441.660
EAN: 7640127616475
Pieces per pack

Available in the shop centrumspawalnicze.pl — prices, availability and shipping in the shop
In the range of centrumspawalnicze.pl — prices, availability and shipping in the shop
On order — order from us by phone or email, we reply within one business day
Genuine optrel product from the authorised distributor SPIDWELD, with the manufacturer's warranty
Technical advice: Mon–Fri 7:30–15:30 (CET), +48 530 009 555

Highlights

Air connection for an e3000/X blower unit or suppliedair system
Panorama-XXL field of view, 6.3 times larger than a 100 × 50 mm filter
ShadeTronic® 5–12, manual 7–12, light state 2.5
745 g, protection against particles at up to 120 m/s
Patented nose cut-out keeps the filter window free of fog
Grind mode switched from the outside of the helmet

Overview

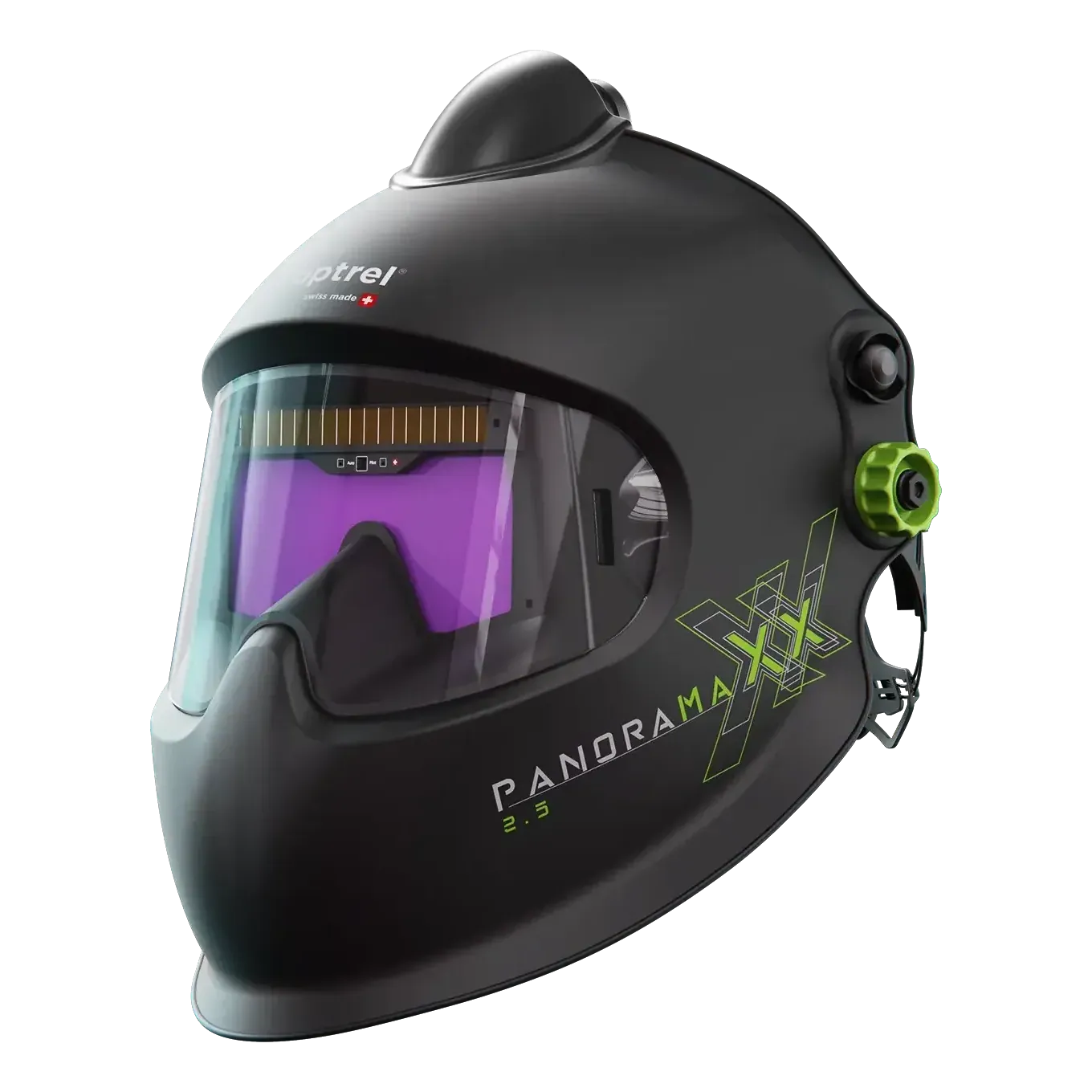

panoramaxx pure air 2.5 is an auto-darkening PAPR welding helmet. You connect it to an e3000/X blower unit or to a suppliedair compressed air system, giving you respiratory protection while welding and grinding. A complete set with the e3000X blower unit is available as a Ready-to-Weld package.

The Panorama-XXL field of view is 6.3 times larger than a standard 100 × 50 mm filter, and the patented nose cut-out separates your breath from the filter, so the viewing window does not fog up. Despite its low weight (745 g), the helmet is highly robust and protects against impact from particles travelling at up to 120 m/s.

The 2.5 filter has a light state of 2.5, ShadeTronic® auto-darkening from 5 to 12, manual mode 7–12 and EN 379 optical class 1/1/1/2. Five sensors detect the arc, sensitivity can be adjusted continuously up to “Super High”, FadeTronic brightens the filter gently after welding, and grind mode is switched from the outside. For a higher optical class choose panoramaxx pure air quattro; for a brighter light state, panoramaxx pure air clt.

The helmet comes with IsoFit® headgear and a 280 mAh battery charged by the welding arc (re-charge) or via Micro USB.

Technical data

Classification EN379: 1–1–1–2: Optical class = 1, Scattered light = 1, Homogeneity = 1, Angular dependence = 2
Colour of knobs: green
Colour of welding helmet: black
Power supply: 280mAh Li-Polymer-battery with battery management system (rechargeable over Micro USB,; battery life: 300 up to 500 charging cycles)
Protection level (not activated): 2.5
Protection levels (automatic): 5–12
Protection levels (manual): 7–12
Sensitivity adjustement: continuously, with “Super High” sensitivity range
Sensoric: 5 sensors
Weight: 745 g / 26.3 oz
Country of origin: Switzerland
