spherePAPR welding helmet

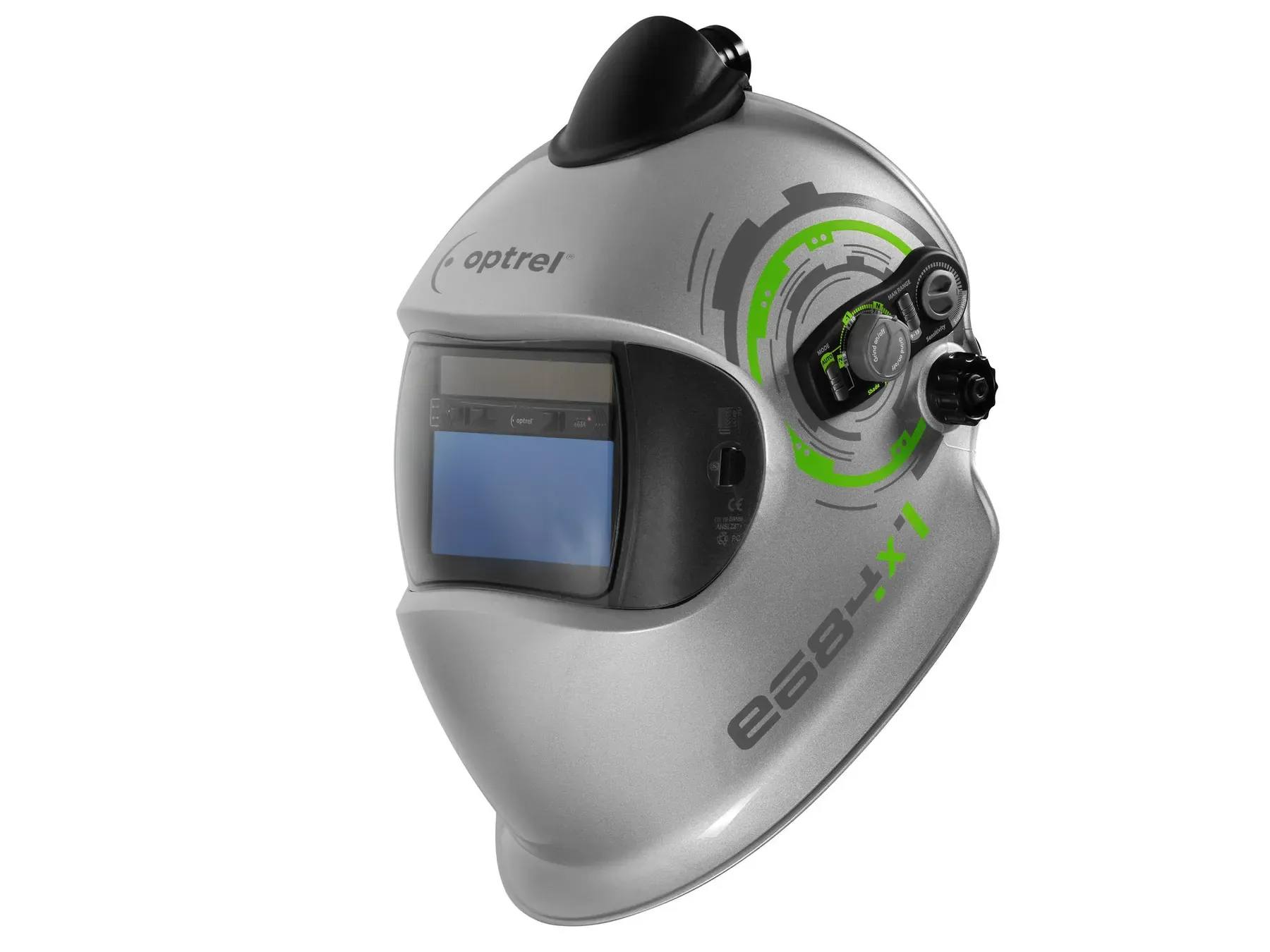

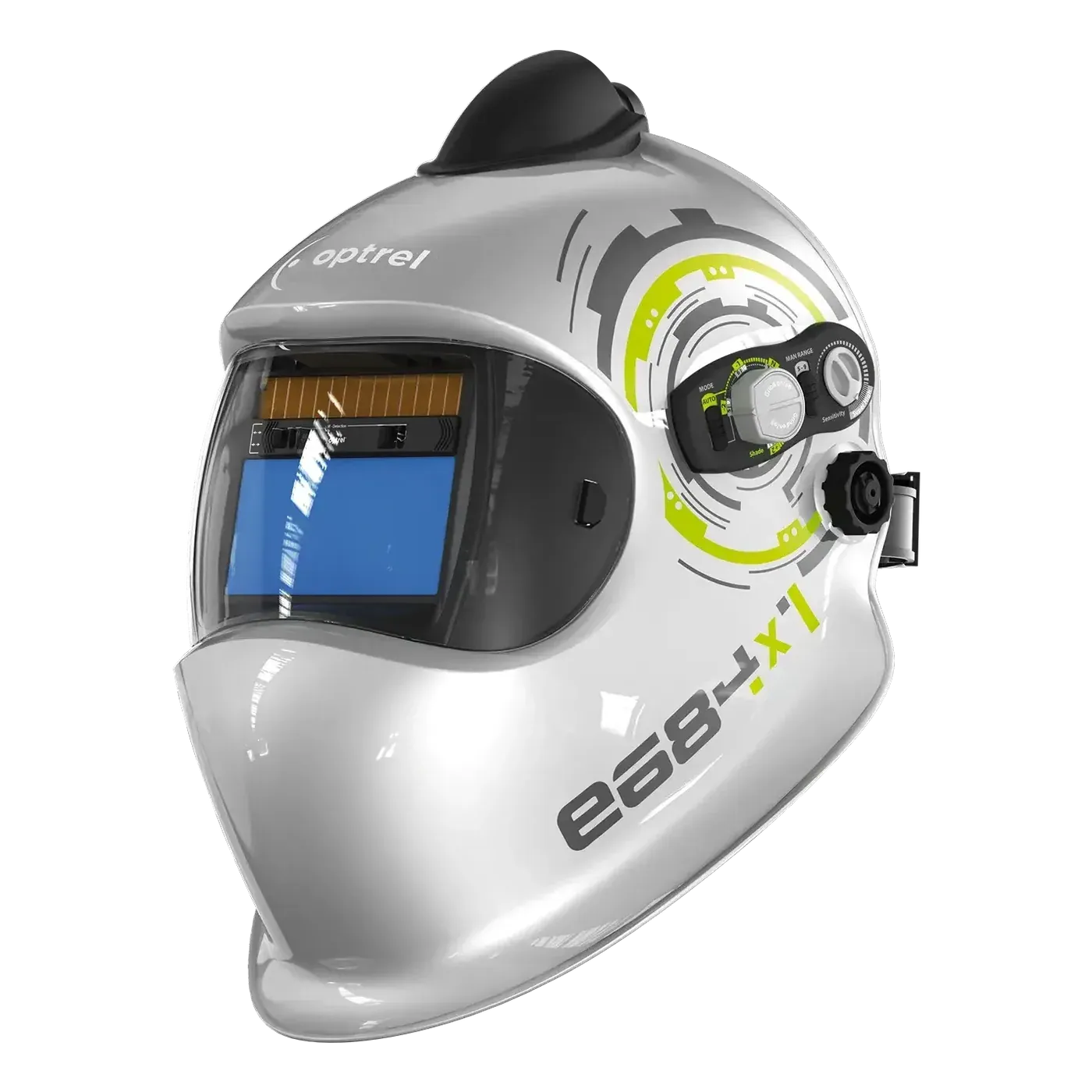

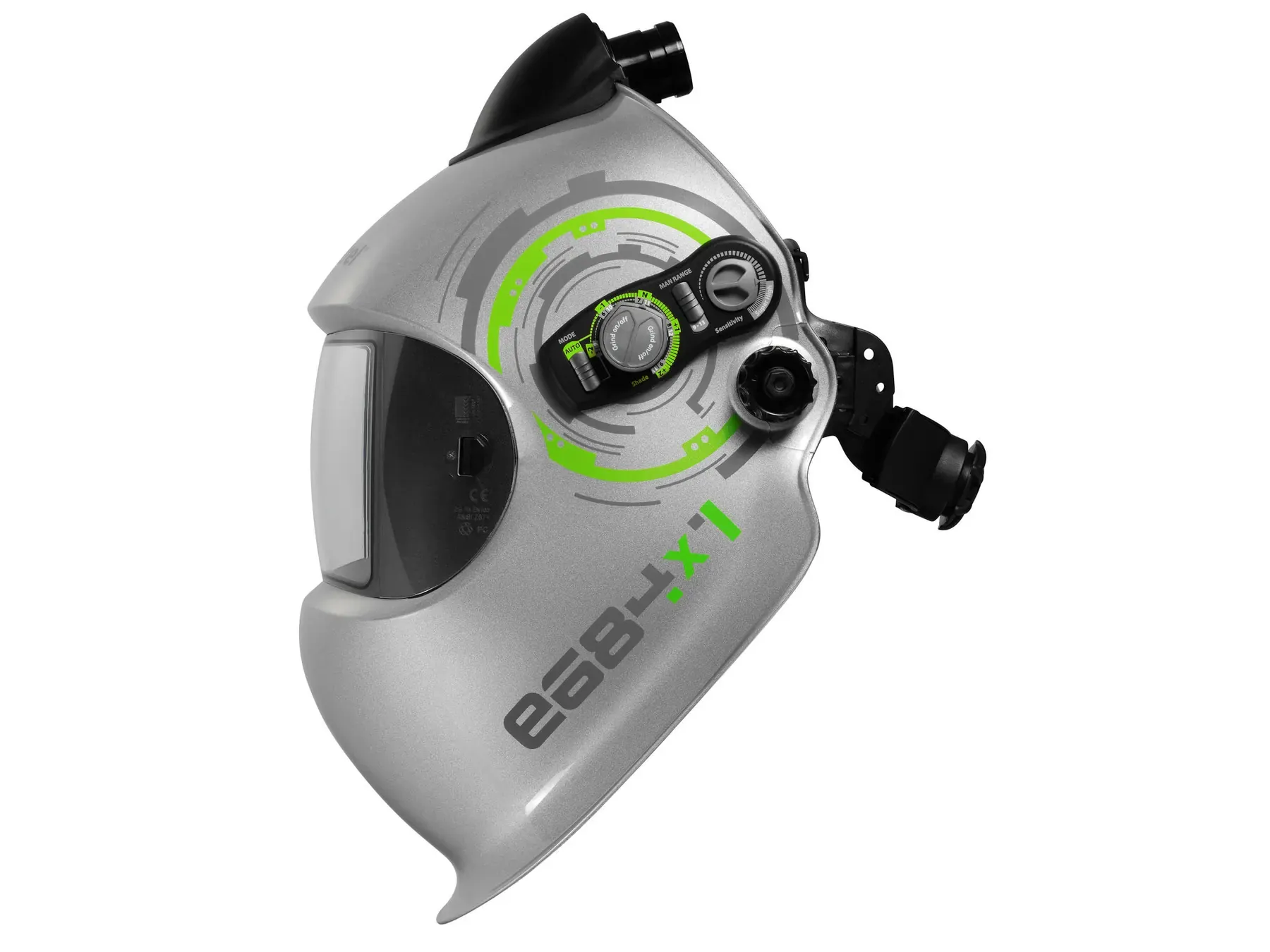

e684 PAPRauto-darkening PAPR welding helmet with air supply
The e684 with air supply: optical class 1/1/1/1, ShadeTronic® 5–13 and respiratory protection with e3000X or suppliedair.
- Protection levels (automatic)
- 5–13
- Protection levels (manual)
- 9–13, 5–9
- Protection level (not activated)
- 4.0
- Classification EN379
- 1–1–1–1
- Article number
- 4441.600
- EAN
- 7640127614983
- Pieces per pack
- Available in the shop centrumspawalnicze.pl — prices, availability and shipping in the shop
- In the range of centrumspawalnicze.pl — prices, availability and shipping in the shop
- On order — order from us by phone or email, we reply within one business day
- Genuine optrel product from the authorised distributor SPIDWELD, with the manufacturer's warranty
- Technical advice: Mon–Fri 7:30–15:30 (CET), +48 530 009 555
Highlights
- Air duct and face seal — for e3000X or suppliedair
- Optical class 1/1/1/1 to EN 379
- ShadeTronic®: automatic 5–13, manual 5–9 and 9–13
- 3 sensors, detection-angle slider, FadeTronic and grind mode
- 700 g, silver or black shell
Overview
The e684 PAPR is an auto-darkening PAPR welding helmet — the e684 prepared for use with respiratory protection. It has an air duct and a face seal, and the incoming air is distributed comfortably inside the helmet. It works with the e3000X blower unit or the suppliedair compressed air system.
Optically it is a full e684: a filter rated 1/1/1/1 to EN 379, ShadeTronic® with automatic shade 5–13, manual ranges of 5–9 and 9–13, and a light state of shade 4. FadeTronic brightens the filter smoothly after welding. Three sensors with a detection-angle slider and stepless sensitivity adjustment with a “Super High” range let you tune the response to your conditions, and the grind mode helps with finishing work.
The helmet weighs 700 g. The patented eccentric mechanism and the comfort headband help you position it precisely and spread the weight to relieve your neck. The filter is powered by solar cells and two replaceable CR2032 batteries. The shell comes in silver or black. A complete system — the silver helmet with the e3000X (ATEX) blower unit — is available as a Ready-to-Weld package, alongside upgrade packages.
Technical data
- Classification EN379
- 1–1–1–1: Optical class = 1, Scattered light = 1, Homogeneity = 1, Angular dependence = 1
- Colour of knobs
- grey
- Colour of welding helmet
- silver / black
- Power supply
- Solar cells, 2 x replaceable 3 V button cell batteries (CR2032)
- Protection level (not activated)
- 4.0
- Protection levels (automatic)
- 5–13
- Protection levels (manual)
- 9–13, 5–9
- Sensitivity adjustement
- continuously, with “Super High” sensitivity range
- Sensoric
- 3 sensors
- Weight
- 700 g / 24.7 oz
- Country of origin
- Switzerland
Technical data according to optrel AG. Images for illustration. Manufacturer's page
Packages with this product
Ready-to-Weld package e684 PAPR + e3000XSilver e684 PAPR welding helmet and the e3000X (ATEX) blower unit with 18h Power battery, parking buddy and bag.
Ready-to-Weld upgrade package e684 PAPR silver + e3000XUpgrade package: silver e684 PAPR helmet shell without cassette and the e3000X (ATEX) blower unit with 18h Power battery.
Ready-to-Weld upgrade package e684 PAPR black + e3000XUpgrade package: black e684 PAPR helmet shell without cassette and the e3000X (ATEX) blower unit with 18h Power battery.
Air supply unit for this helmet
The helmet comes without an air supply unit — connect it to one of these systems or choose a ready-to-weld package.
e3000XTH3 blower unit for powered air helmets: up to 240 l/min of air, up to 18 hours of battery life and ATEX certification for zones 2 and 22.
suppliedair comfortConnects a compressed air source to an optrel powered air helmet: adjustable 170–250 l/min airflow, flow meter and comfort belt included.
