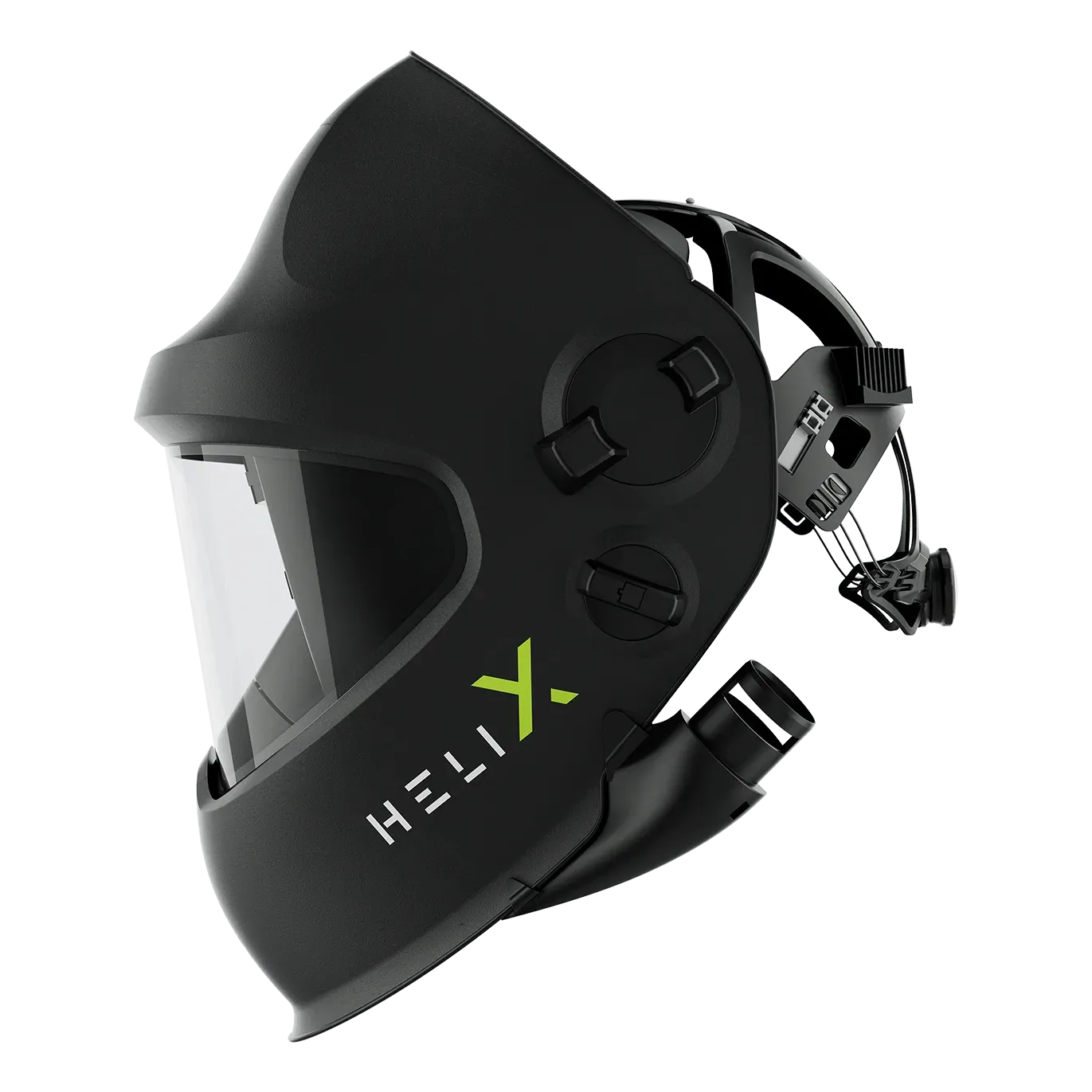

helixPAPR welding helmet
helix pure air 2.5PAPR welding helmet with industrial safety helmet
Slide Up welding helmet with air supply from e3000/X or suppliedair, a Panorama-XXL field of view and ShadeTronic® 5–12.
- Protection levels (automatic)
- 5–13
- Protection levels (manual)
- 7–12, 8–13
- Protection level (not activated)
- 2.5
- Classification EN379
- 1–1–1–2
- Article number
- 4441.980
- EAN
- 7640429872739
- Pieces per pack
- Available in the shop centrumspawalnicze.pl — prices, availability and shipping in the shop
- In the range of centrumspawalnicze.pl — prices, availability and shipping in the shop
- On order — order from us by phone or email, we reply within one business day
- Genuine optrel product from the authorised distributor SPIDWELD, with the manufacturer's warranty
- Technical advice: Mon–Fri 7:30–15:30 (CET), +48 530 009 555
Highlights
- Air connection for an e3000/X blower unit or suppliedair system
- ShadeTronic® 5–12 (up to 13 with +1.0 inner cover lens), manual 7–12
- Slide Up: clear mode with a 180° view, pano mode for welding
- Panorama-XXL field of view, 6.3 times larger than a 100 × 50 mm filter
- 5 sensors, EN 379 optical class 1/1/1/2
- Weight: 1158 g with EN 397 safety helmet, 828 g without
Overview
helix pure air 2.5 is the entry-level powered air version of the helix helmet. You connect it to an e3000/X blower unit or to a suppliedair compressed air system, and the air is distributed comfortably inside the shell. A complete set with the e3000X (ATEX) blower unit is available as a Ready-to-Weld package.
The Slide Up mechanism switches the helmet between clear mode — a clear visor with a 180° view — and pano mode with the Panorama-XXL field of view, 6.3 times larger than a standard 100 × 50 mm filter. The helmet protects the whole head during welding, cutting and grinding.
ShadeTronic® sets the shade automatically between 5 and 12, with 7–12 available manually; with the +1.0 inner cover lens both ranges reach shade 13. The light state is shade 2.5 and the optical class is 1/1/1/2. Five sensors detect the arc, sensitivity can be adjusted continuously up to “Super High”, and FadeTronic brightens the filter gently after welding. For a higher optical class choose helix pure air quattro; for a brighter light state, helix pure air clt.
The version with an EN 397 industrial safety helmet weighs 1158 g, and the version without it 828 g. The helmet comes with IsoFit® headgear and a 280 mAh battery charged by the welding arc (re-charge) or via Micro USB.
Technical data
- Classification EN379
- 1–1–1–2: Optical class = 1, Scattered light = 1, Homogeneity = 1, Angular dependence = 2
- Colour of knobs
- black
- Colour of welding helmet
- black
- Power supply
- 280mAh Li-Polymer-battery with battery management system (rechargeable over Micro USB,; battery life: 300 up to 500 charging cycles)
- Protection level (not activated)
- 2.5
- Protection levels (automatic)
- 5–13
- Protection levels (manual)
- 7–12, 8–13 (Enhanced protection level when using “Inner protective lens true-colour +1.0’)
- Sensitivity adjustement
- continuously, with “Super High” sensitivity range
- Sensoric
- 5 sensors
- Weight
- 1158 g (with industrial safety helmet) / 828 g (without industrial safety helmet)
- Country of origin
- Switzerland
Technical data according to optrel AG. Images for illustration. Manufacturer's page
Technologies
- FadeTronicGentle opening of the filter after welding
- Multi-Sensor-DetectionUp to five sensors for reliable arc detection anywhere
- Panorama-XXL field of viewSix times the field of view of a standard filter
- Position LockerYour helmet stays exactly where you put it
- ShadeTronic®The right shade level, set automatically and steplessly
Air supply unit for this helmet
The helmet comes without an air supply unit — connect it to one of these systems or choose a ready-to-weld package.
e3000XTH3 blower unit for powered air helmets: up to 240 l/min of air, up to 18 hours of battery life and ATEX certification for zones 2 and 22.
suppliedair comfortConnects a compressed air source to an optrel powered air helmet: adjustable 170–250 l/min airflow, flow meter and comfort belt included.
Accessories
Magnifying lens +1.00 for helix and panoramaxx series, with nose cut-out
optrel industrial safety helmet for helix series and IsoFit® X headgear,
Leather chest protection, black — for panoramaxx, sphere, liteflip and Y series- Leather chest protection, long, black — for panoramaxx, sphere, liteflip and Y series
Replacement tricot pads for IsoFit® headgear (5 sets of 4 parts)
Leather head and neck protection, black — for panoramaxx, sphere, liteflip and Y series (not for PAPR versions)
IsoFit® headgear for helix series, with Position Locker
Helmet backpack for welding helmets and swiss air, black/green
Consumables and spare parts
- Replacement tricot pads for helix IsoFit® headgear with hard hat (5 sets of 4 parts)
Inside cover lens for helix and panoramaxx series (set of 5)
Inside cover lens, +1.0 shade level, true colour, for helix and panoramaxx series (set of 5)
Front cover lens for helix series (set of 5)
Front sweatband for IsoFit® headgear, except helix series (set of 2)- Long front sweatband for helix IsoFit® headgear with hard hat (set of 2)
Face seal for helix pure air without industrial safety helmet (e3000X)
Helmet shell minimizer for all helix helmets, black
Spark protection grilles for helix industrial safety helmet (set of 2)
Blind cover with print for helix clt
Replacement auto-darkening filter for helix clt (ShadeTronic®, 2/4–12)
Micro USB charging cable for helix and panoramaxx series- Replacement auto-darkening filter for helix 2.5 (ShadeTronic®, 2.5/5–12)
Slide Up handle for helix series- Replacement auto-darkening filter for helix quattro (ShadeTronic®, 3/4–13)
Nose pad for helix and panoramaxx series (set of 2)
Micro USB port cover, rubber, for helix and panoramaxx series (set of 2)
Blind cover with print for helix 2.5
Blind cover with print for helix quattro
Downloads
- Product data sheet — helix pure air 2.5by SPIDWELD: specifications, variants, article numbers · EN · PDF
- optrel helix Operating instructionsUser manual · PDF
- optrel helix Technical dataTechnical data sheet · EN · PDF
- optrel helix Broszura produktuBrochure · PL · PDF
- optrel helix Product BrochureBrochure · EN · PDF
Videos
PL0:50optrel helix pure air: Najwyższej klasy przesuwana przyłbica spawalnicza z systemem ochrony drógWatch on YouTube - 0:50
optrel helix pure air: The Ultimate Slide-Up Helmet with PAPR SystemWatch on YouTube
More from this series helix
helix 2.5Slide Up welding helmet with a Panorama-XXL field of view, ShadeTronic® 5–12 and 5 sensors — with or without an industrial safety helmet.
helix quattroSlide Up welding helmet with top optical class 1/1/1/1, ShadeTronic® 4–13 and a Panorama-XXL field of view — with or without a safety helmet.
helix cltSlide Up welding helmet with a crystal lens technology filter: light state 2.0, true colour view and ShadeTronic® 4–12.- helix pure air quattroSlide Up welding helmet with air supply from e3000/X or suppliedair, a quattro filter with optical class 1/1/1/1 and ShadeTronic® 4–13.
- helix pure air cltSlide Up welding helmet with air supply from e3000/X or suppliedair and a crystal lens technology filter: light state 2.0, ShadeTronic® 4–12.
Ready-to-Weld package helix pure air 2.5 + e3000Xhelix pure air 2.5 PAPR welding and grinding helmet with the e3000X (ATEX) blower unit – with or without an industrial safety helmet.- Ready-to-Weld package helix pure air quattro + e3000Xhelix pure air quattro with a ShadeTronic® 4–13 cassette and the e3000X (ATEX) blower unit – with or without an industrial safety helmet.
- Ready-to-Weld package helix pure air clt + e3000Xhelix pure air clt with crystal lens technology (CLT) and the e3000X (ATEX) blower unit – with or without an industrial safety helmet.
