liteflipWelding helmet

liteflip autopilotauto-darkening welding helmet

A super-lightweight flip-up helmet with automatic shade 5–14 and a clear view for grinding once you flip the filter up.

Protection levels (automatic): 5–14
Protection level (not activated): 4.0
Classification EN379: 1–1–1–2
Sensoric: 3 sensors

Choose a variant

blackblack, with universal hard hat adapter

Article number: 1006.700
EAN: 7640127615812
Pieces per pack

Ask about this product +48 530 009 555

Available in the shop centrumspawalnicze.pl — prices, availability and shipping in the shop
In the range of centrumspawalnicze.pl — prices, availability and shipping in the shop
On order — order from us by phone or email, we reply within one business day
Genuine optrel product from the authorised distributor SPIDWELD, with the manufacturer's warranty
Technical advice: Mon–Fri 7:30–15:30 (CET), +48 530 009 555

Highlights

Flip-up design: grind with a clear view
ShadeTronic®: automatic shade 5–14, light state 4
UV/IR filter with true colour view
3 sensors, “Super High” sensitivity range, FadeTronic
530 g, interchangeable side panels
Optical class 1/1/1/2 to EN 379

Overview

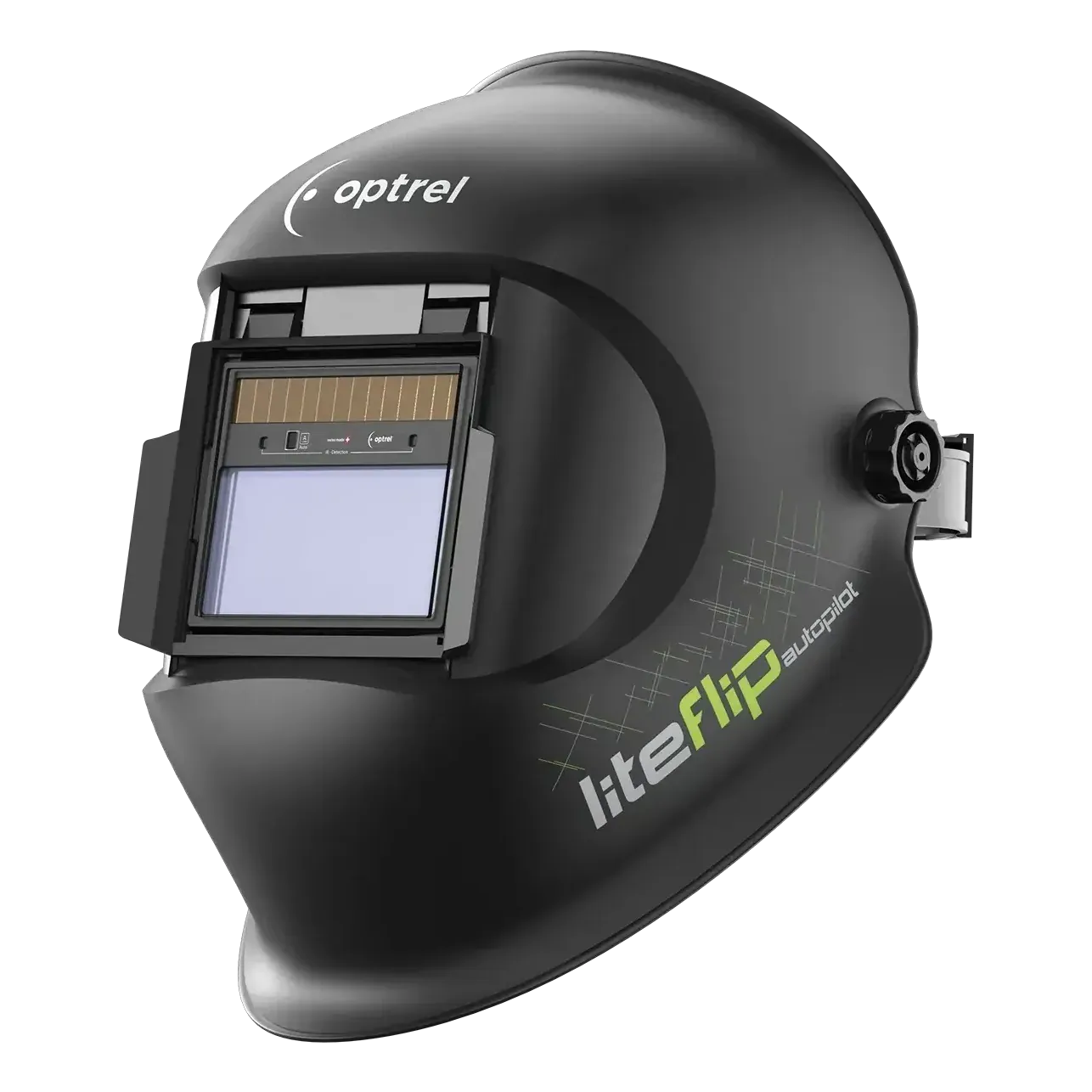

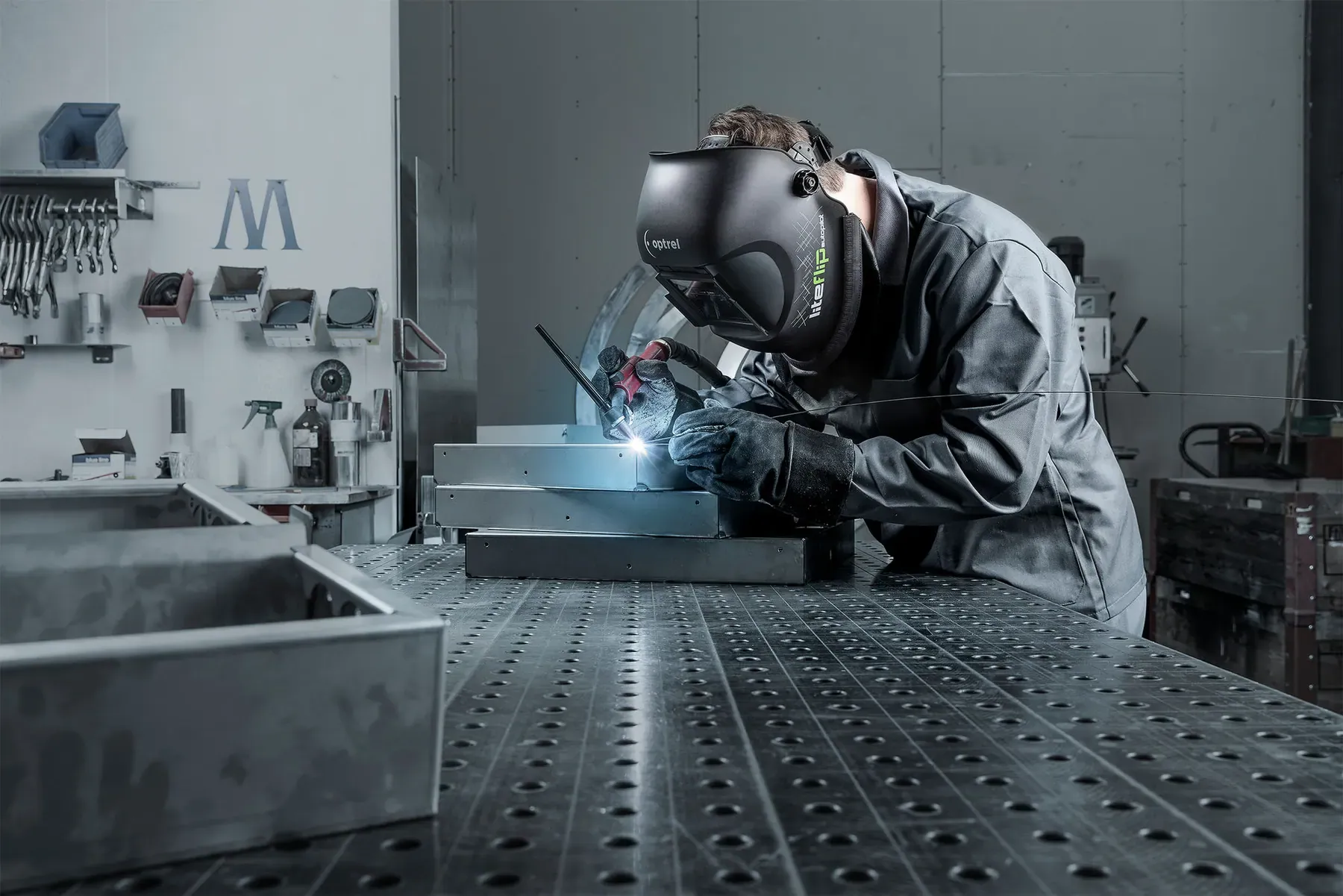

The liteflip autopilot is a super-lightweight auto-darkening welding helmet with a flip-up design. You weld through the auto-darkening filter, then flip it up to grind with a clear, undarkened view. It is a practical choice when welding and grinding alternate throughout the day.

The filter works fully automatically: ShadeTronic® selects the shade between 5 and 14, and in the light state the filter is at shade 4. A specially developed UV/IR filter provides true colour view. Three sensors and stepless sensitivity adjustment with a “Super High” range ensure reliable arc detection, and FadeTronic brightens the filter smoothly after welding. Optical class to EN 379: 1/1/1/2.

The helmet weighs 530 g. The patented eccentric mechanism and the comfort headband make it easy to fit, spread the weight and relieve your neck. Interchangeable side panels let you customise the helmet. The filter is powered by solar cells and two replaceable CR2032 batteries.

Alongside the headband version there is a version with a universal hard hat adapter. According to the manufacturer, the liteflip autopilot can be combined with swiss air respiratory protection; for use with the e3000X blower unit, choose the liteflip autopilot PAPR.

Technical data

Classification EN379: 1–1–1–2: Optical class = 1, Scattered light = 1, Homogeneity = 1, Angular dependence = 2
Colour of knobs: black
Colour of welding helmet: black
Power supply: Solar cells, 2 x replaceable 3 V button cell batteries (CR2032)
Protection level (not activated): 4.0
Protection levels (automatic): 5–14
Sensitivity adjustement: continuously, with “Super High” sensitivity range
Sensoric: 3 sensors
Weight: 530 g / 18.695 oz
Country of origin: Switzerland
